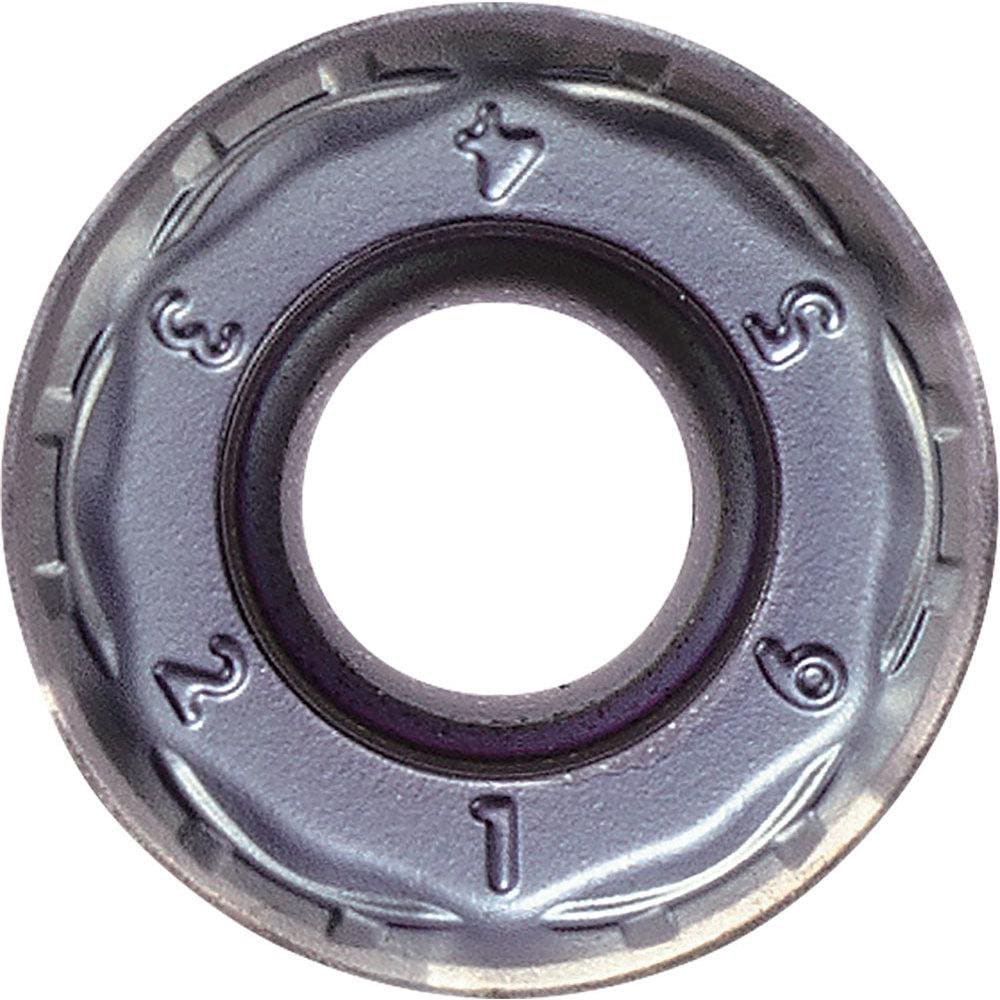

Milling Insert: RDGT0803M0ER-GM PR1810, Carbide
Item #: 86781887
Brand: Kyocera
Model #: TLS00121
Product Specifications
| Insert Style | RDGT |
| Insert Size | 0803 |
| Insert Material | Carbide |
| Insert Shape | Round |
| Manufacturer Grade | PR1810 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (mm) | 0.00 |
| Number Of Cutting Edges | 6 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
| Thickness (mm) | 3.1800 |
| Coating/Finish | MEGACOAT NANO EX |
| Relief Angle | 15.000 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Inscribed Circle (mm) | 8.00 |
| Insert Hand | Right Hand |
| Series | MRX Radius Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.0000 |
| Hole Diameter (Decimal Inch) | 0.1181 |
| Rake | Positive |
| Primary Workpiece Material | Nodular Cast Iron; Gray Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | RDGT0803M0ERGMPR1810 |
| Iso Code | RDGT0803M0ER-GM |
| Manufacturers Catalog Number | RDGT0803M0ERGMPR1810 |
| Chip Breaker | M0ER-GM |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Width (Decimal Inch - 4 Decimals) | 0.3150 |
| Width (mm - 2 Decimals) | 8.00 |
| Multi-Use Tool | Yes |
| Country of Origin | Japan |
