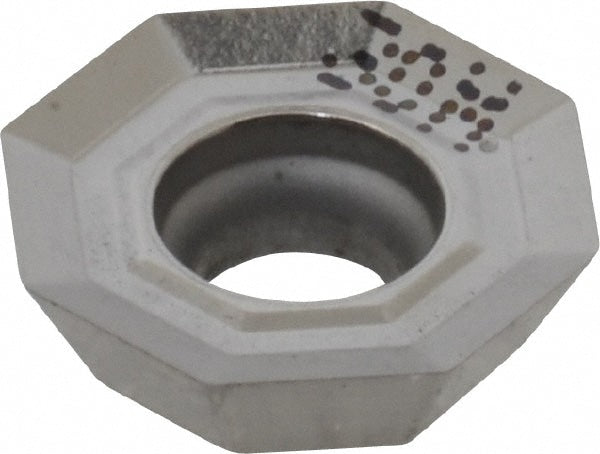

Milling Insert: OFCT05T3AFFN-P IN30M, Solid Carbide
Item #: 85532737
Brand: Ingersoll Cutting Tools
Model #: 5880158
Product Specifications
| Insert Style | OFCT |
| Insert Size | 05 |
| Insert Material | Solid Carbide |
| Insert Shape | Octagon |
| Manufacturer Grade | IN30M |
| Corner Radius (Decimal Inch) | 0.0200 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1440 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 25.00 |
| Insert Size Code | 05T3 |
| Material Grade | Coarse Grain |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Series | OFCT |
| Coating Process | Uncoated |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | OFCT05T3AFFN-P IN30M |
| Iso Code | OFCT05T3AFFN-P |
| Standards | ISO; ANSI |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | 5880158 |
| Cutter Series Compatibility | 5N6H; 15N1H |
| Chip Breaker | P |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 135 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
