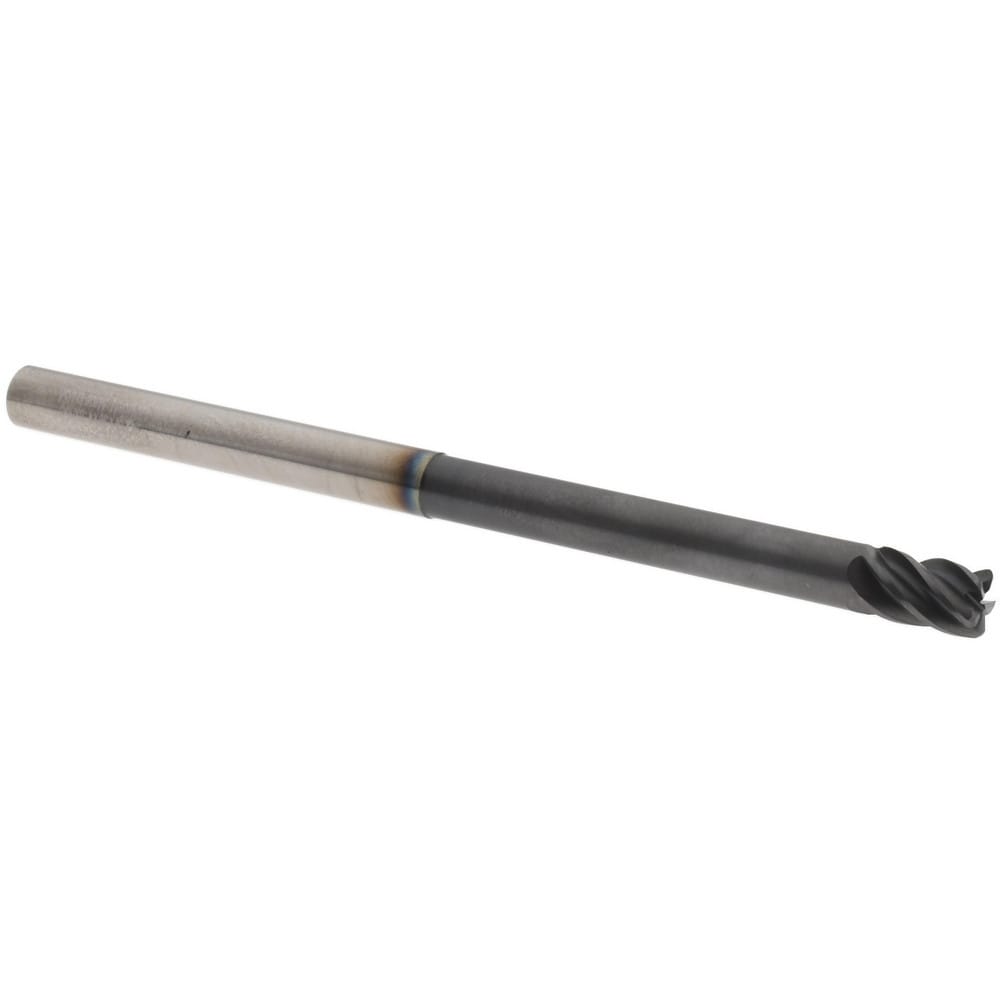

Corner Radius End Mill: 1/4" Dia, 3/8" LOC, 38 deg Helix, Corner Radius End, Centercutting Series HS
Item #: 42516062
Brand: Accupro
Model #: 312116
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number Of Flutes | 5 |
| Length of Cut (mm) | 9.53 |
| Length of Cut (Inch) | 3/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlCrTiN |
| Overall Length (Inch) | 4 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 101.6 |
| Overall Length (Decimal Inch) | 4.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (mm) | 6.35 |
| Neck Diameter (mm) | 0.23 |
| Neck Diameter (Decimal Inch) | 0.2370 |
| Reach Length (Decimal Inch) | 2.1250 |
| Reach Length (Inch) | 2-1/8 |
| Mill Diameter Tolerance | +0.000000/-0.001000 in |
| UNSPSC Code | 27112803 |
| Material Grade | Micrograin |
| Series | HS |
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number Of Flutes | 5 |
| Length of Cut (mm) | 9.53 |
| Length of Cut (Inch) | 3/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlCrTiN |
| Overall Length (Inch) | 4 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 101.6 |
| Overall Length (Decimal Inch) | 4.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (mm) | 6.35 |
| Neck Diameter (mm) | 0.23 |
| Neck Diameter (Decimal Inch) | 0.2370 |
| Reach Length (Decimal Inch) | 2.1250 |
| Reach Length (Inch) | 2-1/8 |
| Mill Diameter Tolerance | +0.000000/-0.001000 in |
| UNSPSC Code | 27112803 |
| Material Grade | Micrograin |
| Series | HS |
| MSC Part # | 42516062 |
| Mfr Part # | 312116 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
