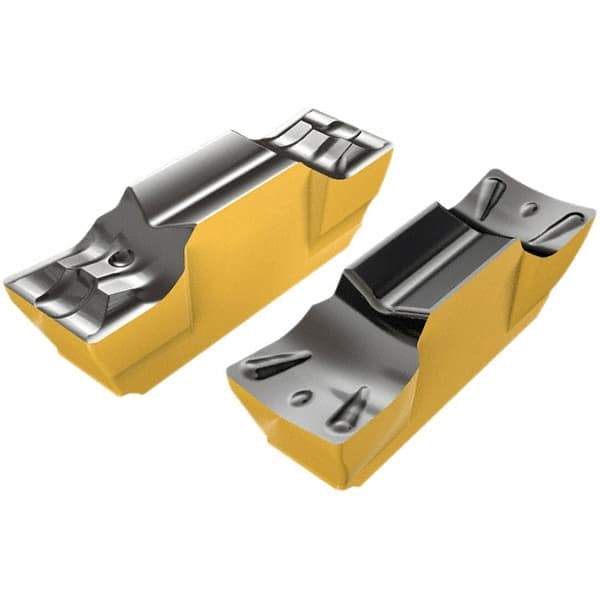

Iscar - 2010GEMI Grade IC808, 2mm Cutting Width Carbide Grooving Insert - 1mm Max Depth of Cut, 1mm Corner Radius, TiAlN/AlTiN/TiN Finish
Item #: 35116037
Brand: Iscar
Model #: 3302935
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GEMI |
| Insert Size | 2010 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0790 |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Material Grade | Fine-grained |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Relief Angle | 8 |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0390 |
| Corner Radius (mm) | 1.00 |
| Corner Radius (Decimal Inch) | 0.0390 |
| Coating Process | PVD |
| Series | Cut Grip |
| Rake Angle | 8 |
| ISO Number | GEMI 2010Y IC808 |
| Manufacturers Catalog Number | 3302935 |
| Overall Width (mm) | 1.60 |
| Overall Width (Decimal Inch) | 0.0630 |
