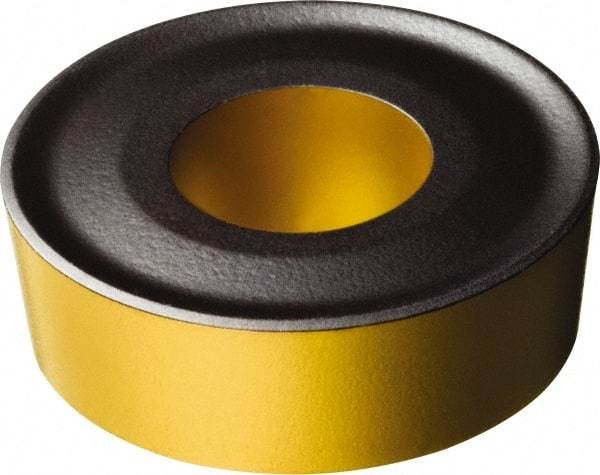

Sandvik Coromant - RCMX120400 0 Grade 4305 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, Round, 12mm Inscr Circle, 3/16" Thick
Item #: 35015494
Brand: Sandvik Coromant
Model #: 6709512
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Insert Size | 120400 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Manufacturer's Grade | 4305 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | 0 |
| Hole Diameter (mm) | 4.20 |
| Hole Diameter (Decimal Inch) | 0.1654 |
| ISO Number | RCMX 12 04 00 4305 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Insert Holding Method | Screw |
| Cutting Edge Style | Rounded |
| Shape | Round |
