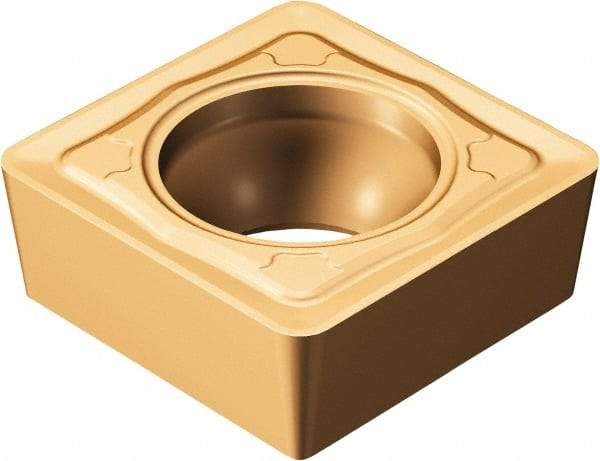

Sandvik Coromant - SCMT32.52 SMC Grade 1115 Carbide Turning Insert - TiAlN/AlCr2O3 Finish, 90° Square, 3/8" Inscr Circle, 5/32" Thick, 1/32" Corner Radius
Item #: 35010453
Brand: Sandvik Coromant
Model #: 6198192
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Insert Size | 32.52 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (mm) | 3.97 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | 1115 |
| Coating | TiAlN/AlCr2O3 |
| Chip Breaker | SMC |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | SCMT 09 T3 08-SMC 1115 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 8.72 |
| Insert Holding Method | Screw |
| Cutting Edge Style | Rounded |
| Shape | Square |
