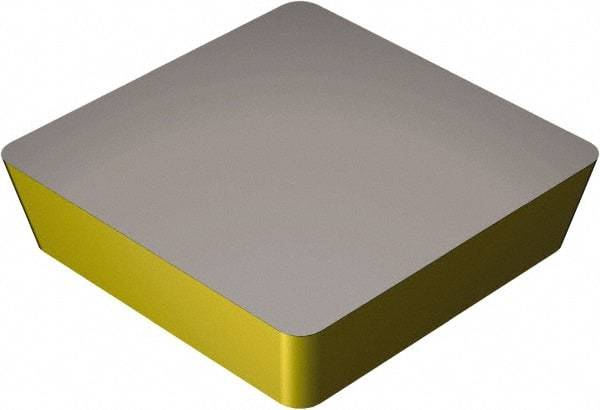

Sandvik Coromant - SPU633 PUN Grade 3225 Carbide Turning Insert - TiCN/Al2O3 Finish, 90° Square, 3/4" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 35004274
Brand: Sandvik Coromant
Model #: 6868401
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPU |
| Insert Size | 633 |
| Material | Carbide |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (mm) | 1.1906 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | 3225 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | PUN |
| ISO Number | SPUN 19 04 12 3225 |
| Relief Angle | 11 |
| Coating Process | CVD |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Maximum Depth of Cut (mm) | 17.85 |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Rounded |
| Shape | Square |
