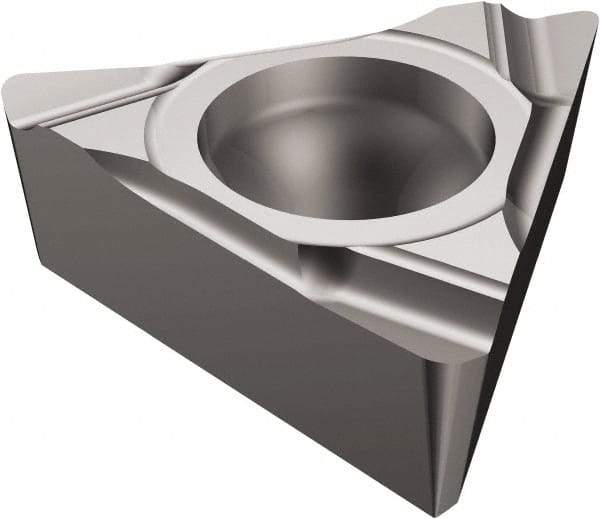

Sandvik Coromant - TCGX1.81.51 WK Grade 5015 Cermet Turning Insert - Uncoated, 60° Triangle, 5.71mm Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 35001379
Brand: Sandvik Coromant
Model #: 5751767
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TCGX |
| Insert Size | 1.81.51 |
| Material | Cermet |
| Inscribed Circle (mm) | 5.71 |
| Inscribed Circle (Decimal Inch) | 0.2250 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0937 |
| Thickness (mm) | 2.38 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | 5015 |
| Coating | Uncoated |
| Chip Breaker | WK |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| ISO Number | TCGX 09 02 04R-WK 5015 |
| Lead Angle | 91.000 |
| Relief Angle | 7 |
| Included Angle | 60 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 8.97 |
| Insert Holding Method | Screw |
| Cutting Edge Style | Sharp |
| Shape | Triangle |
