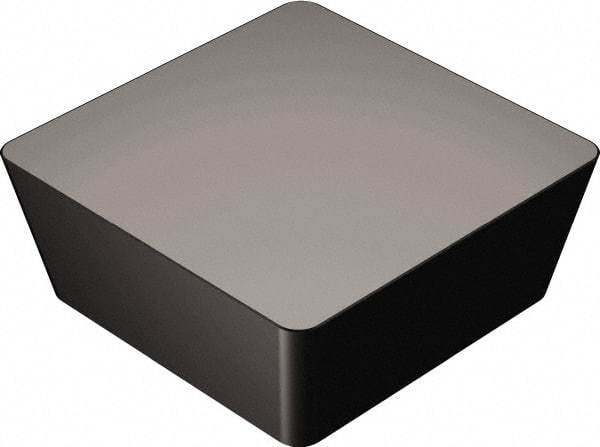

Sandvik Coromant - SPG432 Grade 650 Ceramic Turning Insert - TiN Finish, 90° Square, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 35001338
Brand: Sandvik Coromant
Model #: 5750978
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | SPG |
| Insert Size | 432 |
| Material | Ceramic |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | 650 |
| Coating | TiN |
| ISO Number | SPGN 12 04 08T01020 650 |
| Relief Angle | 11 |
| Coating Process | PVD |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Maximum Depth of Cut (mm) | 11.90 |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Chamfered |
| Shape | Square |
