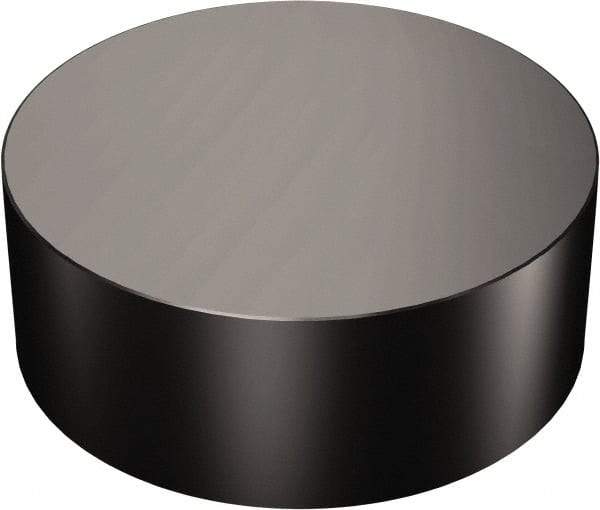

Sandvik Coromant - RNG55 Grade 650 Ceramic Turning Insert - TiN Finish, Round, 5/8" Inscr Circle, 5/16" Thick, 7.9375mm Corner Radius
Item #: 35000835
Brand: Sandvik Coromant
Model #: 5741259
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RNG |
| Insert Size | 55 |
| Material | Ceramic |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3125 |
| Thickness (mm) | 7.94 |
| Corner Radius (mm) | 7.9375 |
| Manufacturer's Grade | 650 |
| Coating | TiN |
| ISO Number | RNGN 15 07 00T02520 650 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Chamfered |
| Shape | Round |
