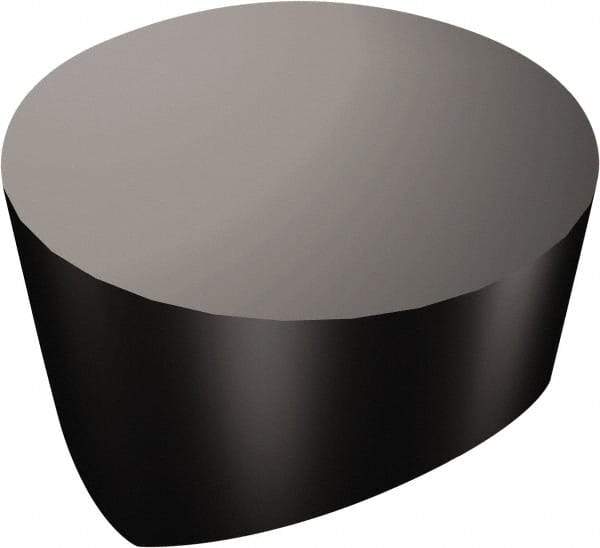

Sandvik Coromant - RCGX24 E Grade 6065 Ceramic Turning Insert - Round, 1/4" Inscr Circle, 1/4" Thick
Item #: 35000728
Brand: Sandvik Coromant
Model #: 5738788
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RCGX |
| Insert Size | 24 |
| Material | Ceramic |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Manufacturer's Grade | 6065 |
| Chip Breaker | E |
| ISO Number | RCGX060600E 6065 |
| Relief Angle | 7 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Rounded |
| Shape | Round |
