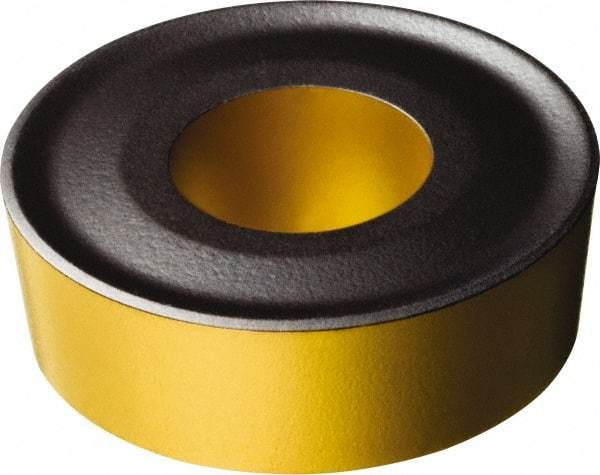

Sandvik Coromant - RCMX320900 0 Grade 4215 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, Round, 32mm Inscr Circle, 3/8" Thick
Item #: 34998740
Brand: Sandvik Coromant
Model #: 5741006
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Insert Size | 320900 |
| Material | Carbide |
| Inscribed Circle (mm) | 32.00 |
| Inscribed Circle (Decimal Inch) | 1.2598 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Thickness (mm) | 9.53 |
| Manufacturer's Grade | 4215 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | 0 |
| Hole Diameter (mm) | 9.50 |
| Hole Diameter (Decimal Inch) | 0.3740 |
| ISO Number | RCMX 32 09 00 4215 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Insert Holding Method | Screw |
| Cutting Edge Style | Rounded |
| Shape | Round |
