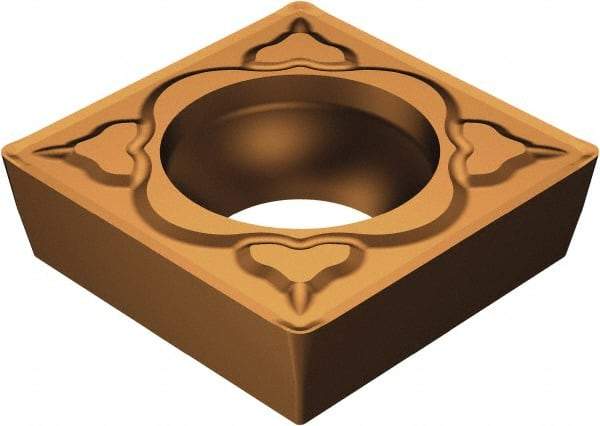

Sandvik Coromant - SCMT431 MM Grade 1115 Carbide Turning Insert - TiAlN/AlCr2O3 Finish, 90° Square, 1/2" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 34998484
Brand: Sandvik Coromant
Model #: 5748910
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Insert Size | 431 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | 1115 |
| Coating | TiAlN/AlCr2O3 |
| Chip Breaker | MM |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| ISO Number | SCMT 12 04 04-MM 1115 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 12.30 |
| Insert Holding Method | Screw |
| Cutting Edge Style | Rounded |
| Shape | Square |
