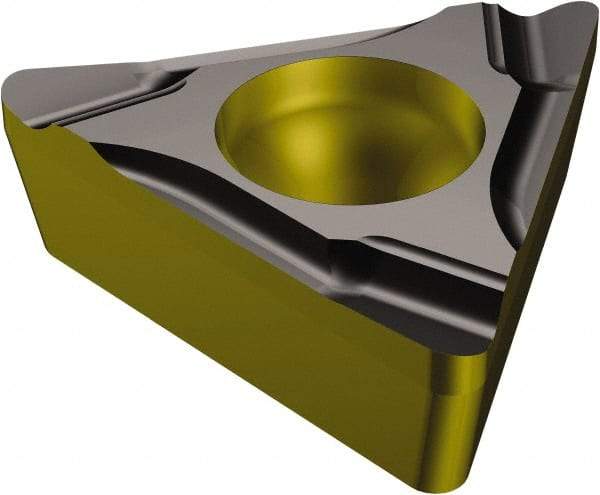

Sandvik Coromant - TCGT1.21.21 K Grade 1515 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 60° Triangle, 5/32" Inscr Circle, 5/64" Thick, 1/64" Corner Radius
Item #: 34997296
Brand: Sandvik Coromant
Model #: 5752086
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCGT |
| Insert Size | 1.21.21 |
| Material | Carbide |
| Inscribed Circle (mm) | 3.97 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 5/64 |
| Thickness (Decimal Inch) | 0.0780 |
| Thickness (mm) | 1.98 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | 1515 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | K |
| Hole Diameter (mm) | 2.20 |
| Hole Diameter (Decimal Inch) | 0.0866 |
| ISO Number | TCGT 06 T1 04R-K 1515 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Included Angle | 60 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 6.22 |
| Insert Holding Method | Screw |
| Cutting Edge Style | Sharp |
| Shape | Triangle |
