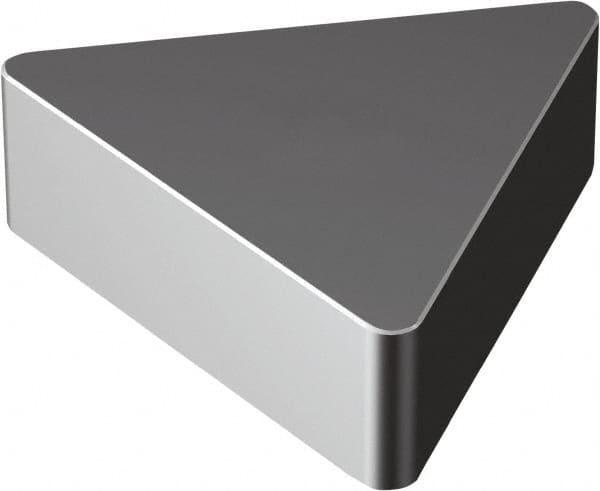

Sandvik Coromant - TNG353 Grade 650 Ceramic Turning Insert - 60° Triangle, 3/8" Inscr Circle, 5/16" Thick, 3/64" Corner Radius
Item #: 34996934
Brand: Sandvik Coromant
Model #: 5753770
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | TNG |
| Insert Size | 353 |
| Material | Ceramic |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3125 |
| Thickness (mm) | 7.94 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (mm) | 1.1906 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | 650 |
| ISO Number | TNGN 16 07 12T01020 650 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Maximum Depth of Cut (mm) | 15.30 |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Chamfered |
| Shape | Triangle |
