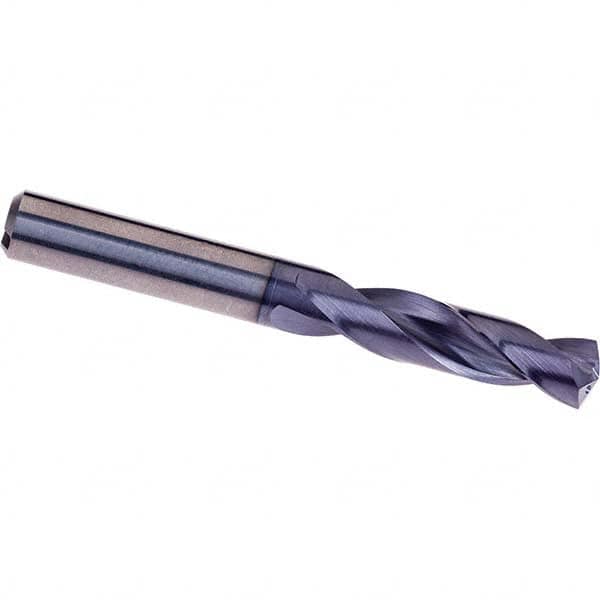

DORMER - 9.4mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 16950909
Brand: DORMER
Model #: 7625187
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.3701 |
| Drill Bit Size (mm) | 9.40 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (mm) | 47.00 |
| Overall Length (mm) | 89.00 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (mm) | 10.00 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 40.00 |
| Number of Flutes | 2 |
| Web Configuration | Parallel |
| Web Thinning | Web-Thinning |
| Through Coolant | Yes |
