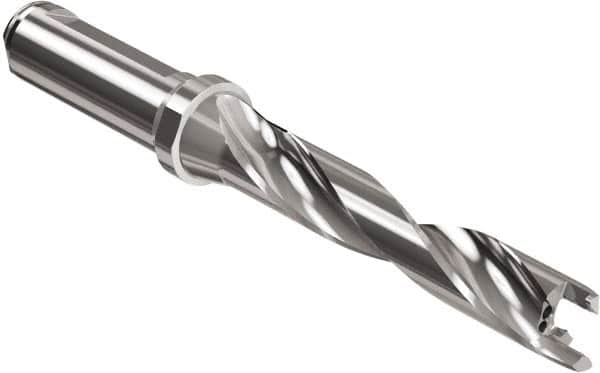

Seco - 15 to 15.99mm Diam, 5xD, 80mm Max Depth, 5/8" Shank Diam, 3.551" Flute, 6.031" OAL, Replaceable Tip Drill - SD405 Toolholder, Series Crownloc Plus
Item #: 34978296
Brand: Seco
Model #: 40158
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | Crownloc Plus |
| Minimum Drill Diameter (mm) | 15.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5906 |
| Maximum Drill Diameter (mm) | 15.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6295 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 3.1496 |
| Maximum Drill Depth (mm) | 80.00 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Toolholder Style | SD405 |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Flute Length (Decimal Inch) | 3.5510 |
| Body Length (Decimal Inch) | 4.1420 |
| Toolholder Coating | TiAlN |
| Overall Length (Decimal Inch) | 6.0310 |
| Shank Length (Decimal Inch) | 1.8900 |
