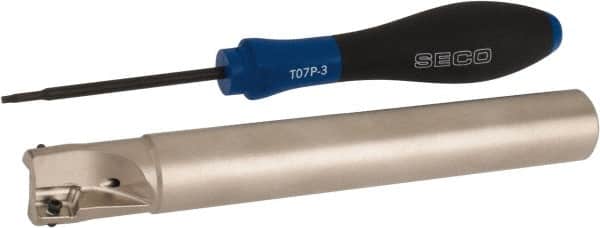

Seco - 3/4" Cut Diam, 0.354" Max Depth of Cut, 3/4" Shank Diam, 5.906" OAL, Indexable Square Shoulder End Mill - XO.X 10T3.. Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Turbo 10
Item #: 34959866
Brand: Seco
Model #: 68445
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Inch) | 3/4 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 5.9060 |
| Lead Angle | 90 |
| Series | Turbo 10 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | R217.69-10 |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (Decimal Inch) | 0.7500 |
| Head Length (Decimal Inch) | 1.1810 |
| Weldon Flat | No |
| Insert Compatibility | XO.X 10T3.. |
| Shank Length (Decimal Inch) | 4.7240 |
| Maximum RPM | 26300 |
| Toolholder Material | Steel |
