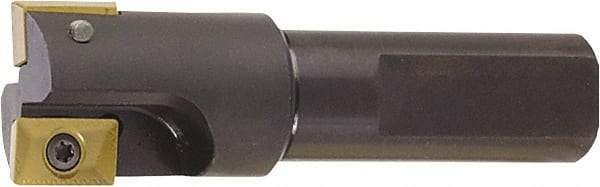

Kyocera - 1" Cut Diam, 0.37" Max Depth of Cut, 3/4" Shank Diam, 3.03" OAL, Indexable Square Shoulder End Mill - XPMT 0902 Inserts, Flatted Shank, 90° Lead Angle
Item #: 33897653
Brand: Kyocera
Model #: 8601004
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Flatted |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 3.0300 |
| Lead Angle | 90 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.37 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | EM |
| Number of Flutes | 3 |
| Head Length (Inch) | 1 |
| Head Length (Decimal Inch) | 1.0000 |
| Weldon Flat | No |
| Insert Compatibility | XPMT 0902 |
| Shank Length (Decimal Inch) | 2.0300 |
