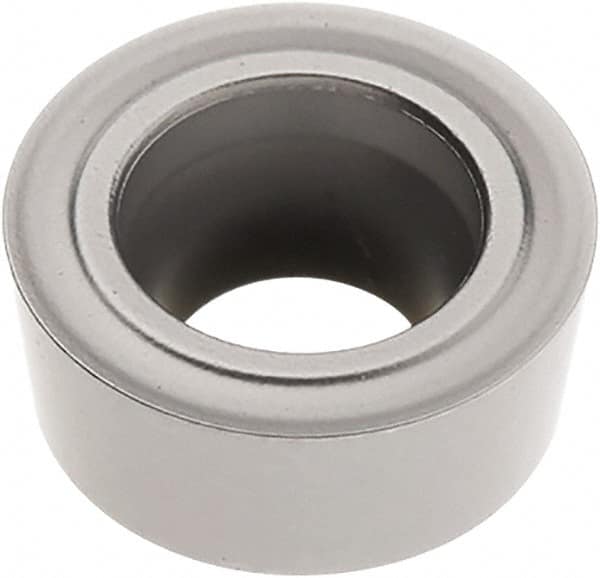

Seco - RCMT0602M0 F1 Grade TP3501 Carbide Turning Insert - TiCN/Al2O3 Finish, Round, 6mm Inscr Circle, 3/32" Thick
Item #: 33741786
Brand: Seco
Model #: 49487
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 0602M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 6.00 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Manufacturer's Grade | TP3501 |
| Coating | TiCN/Al2O3 |
| Material Grade | C4/C5 |
| Chip Breaker | F1 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | Duratomic |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| FullRadius | Yes |
| MultiUseTool | Yes |
| Shape | Round |
