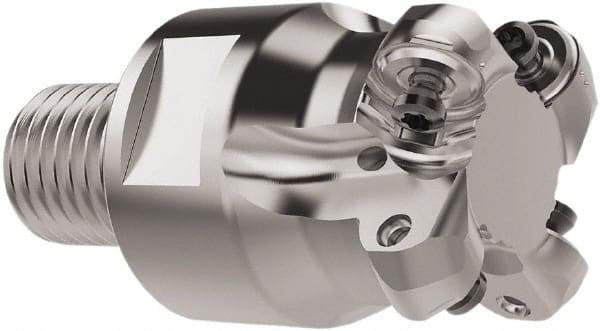

Seco - 40mm Cutting Diam, 20mm Shank Diam, 6mm Max Depth of Cut, Combimaster Indexable Copy End Mill - 4 Inserts, RNMU12.. Insert, R217.28 Toolholder, Steel, Through Coolant
Item #: 33713314
Brand: Seco
Model #: 47069
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5750 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M20 |
| Shank Taper Size | None |
| Number of Cutter Inserts | 4 |
| Insert Style | RNMU12.. |
| Toolholder Style | R217.28 |
| Series | R217 |
| Overall Length (Decimal Inch) | 1.7720 |
| Insert Diameter (mm) | 12.00 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (mm) | 20.00 |
| Head Length (mm) | 45.00 |
| Maximum RPM | 14000 |
| Modular Connection Size | M20 |
