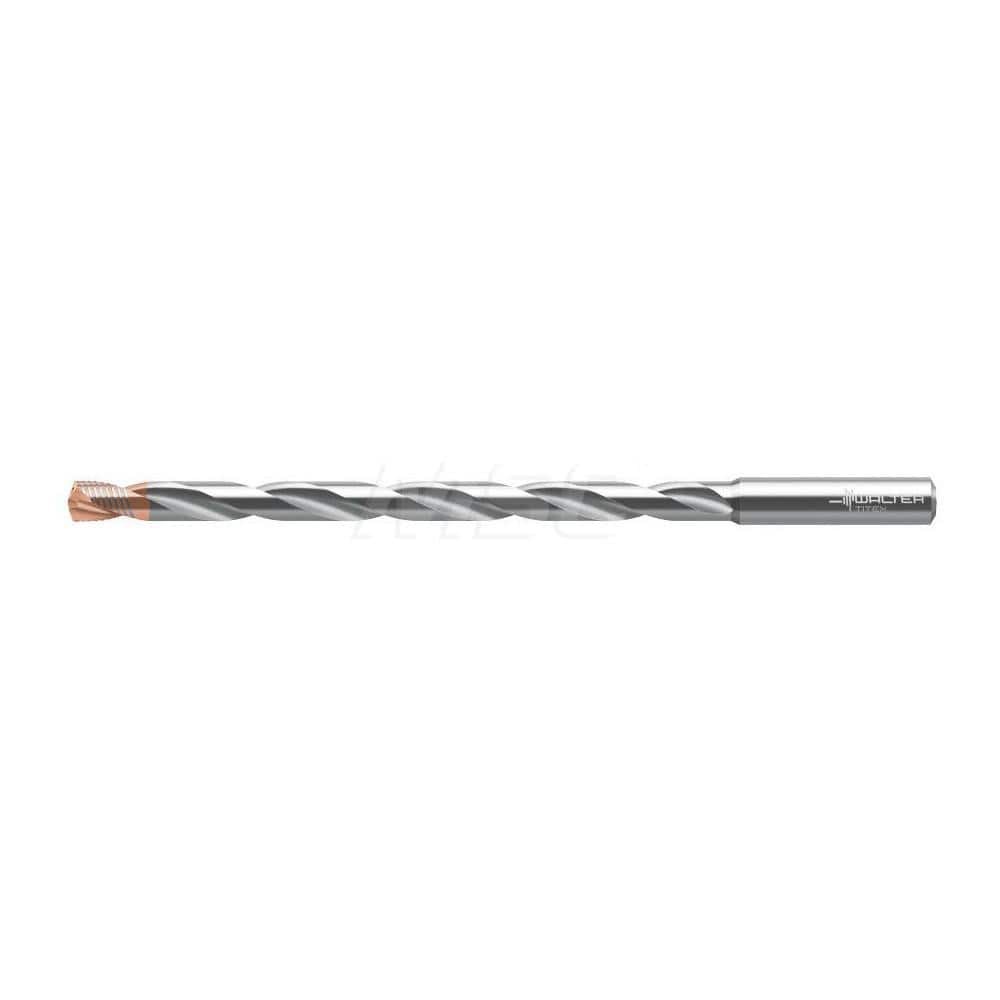

Extra Length Drill Bit: 0.5625″ Dia, 140 °, Solid Carbide TiAlN Finish, 8.189″ Flute Length, 10.236″ OAL, Spiral Flute, Straight-Cylindrical Shank, Series DC170
Item #: 33645029
Brand: Walter-Titex
Model #: 6745562
Product Specifications
| Drill Bit Size (Inch) | 9/16 |
| Overall Length (mm) | 260.00 |
| Flute Length (mm) | 208.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | DC170 |
| Cutting Direction | Right Hand |
| Tool Application | Cross Hole; Blind Hole; Inclined Hole Exit; Stack Drilling |
| Drill Bit Diameter Tolerance | m7 |
| Number Of Flutes | 2 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H |
| Standards | ISO; DIN 6535 HA; ANSI |
| Drill Bit Size (Decimal Inch) | 0.5625 |
| Drill Point Length (mm) | 2.60 |
| Drill Point Length (Decimal Inch) | 0.1020 |
| Overall Length (Decimal Inch) | 10.2360 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Shank Diameter (mm) | 16.00 |
| Shank Length (Decimal Inch) | 1.8900 |
| Shank Length (mm) | 48.00 |
| Flute Length (Decimal Inch) | 8.1890 |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (Decimal Inch) | 7.5590 |
| Maximum Drilling Depth (mm) | 192.00 |
