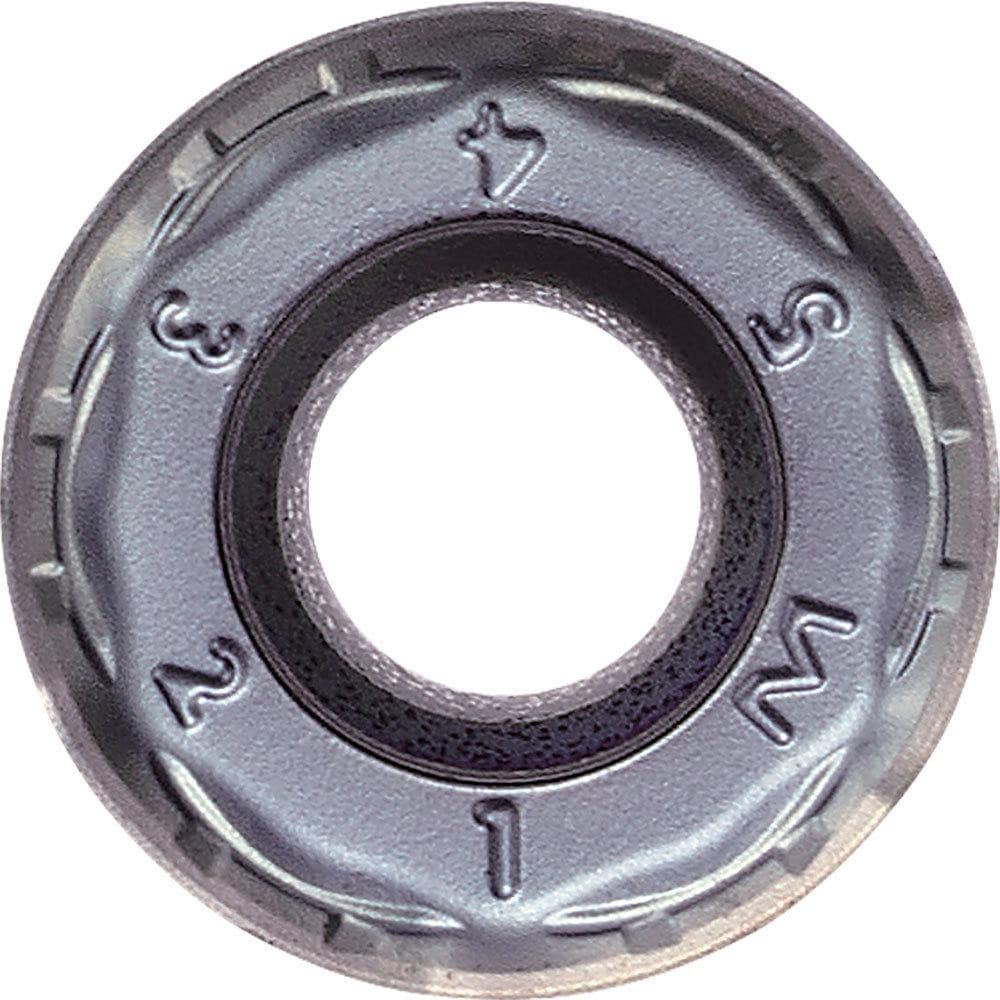

Milling Insert: RDMT08T2M0-H PR1810, Carbide
Item #: 86525870
Brand: Kyocera
Model #: TLS00111
Product Specifications
| Insert Style | RDMT |
| Insert Size | 08T2 |
| Insert Material | Carbide |
| Insert Shape | Round |
| Manufacturer Grade | PR1810 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (mm) | 0.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1095 |
| Thickness (mm) | 2.7800 |
| Coating/Finish | MEGACOAT NANO EX |
| Relief Angle | 15.000 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Inscribed Circle (mm) | 8.00 |
| Insert Hand | Neutral |
| Series | MRP Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.4000 |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Rake | Positive |
| Primary Workpiece Material | Nodular Cast Iron; Gray Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | RDMT08T2M0HPR1810 |
| Iso Code | RDMT08T2M0-H |
| Manufacturers Catalog Number | RDMT08T2M0HPR1810 |
| Chip Breaker | M0H |
| Cutting Direction | Neutral |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Width (Decimal Inch - 4 Decimals) | 0.3150 |
| Width (mm - 2 Decimals) | 8.00 |
| Multi-Use Tool | Yes |
| Country of Origin | Japan |
