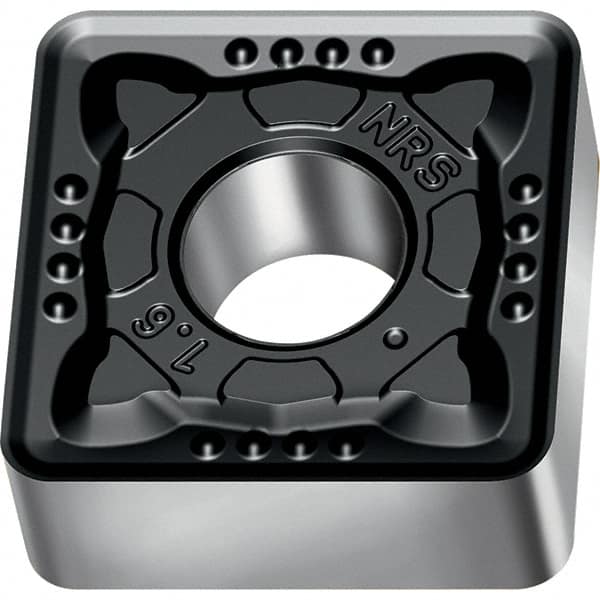

Walter - SNMG NRS Grade WSM10S Turning Insert - TiAlN+Al2O3+(Al) Finish, 90° Square, 12.7mm Inscr Circle, 4.76mm Thick, 1.2mm Corner Radius
Item #: 33363763
Brand: Walter
Model #: 7053924
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Length (mm) | 12.70 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1880 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 1.2 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Manufacturer's Grade | WSM10S |
| Coating | TiAlN+Al2O3+(Al) |
| Chip Breaker | NRS |
| Insert Length (Decimal Inch) | 0.5000 |
| OverallLength (mm) | 12.70 |
| Overall Length (Decimal Inch) | 0.5000 |
| Insert Length (mm) | 12.7000 |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| ISO Number | SNMG120412-NRS WSM10S |
| Relief Angle | 0 |
| Proprietary Coating Designation | WSM10S |
| Coating Process | PVD |
| Manufacturers Catalog Number | 7053924 |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | SNMG-NRS |
| Maximum Depth of Cut (mm) | 12.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Cutting Width (mm) | 12.70 |
| Shape | Square |
