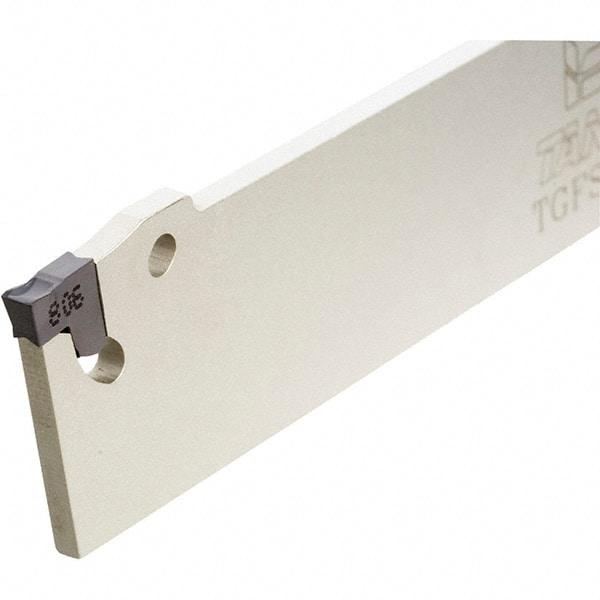

Iscar - 0.685" Blade Height, 3.4mm Blade Width, 110mm OAL, Neutral Cut, Single End Indexable Cut-Off Blade - TGFS Blade, Tang-Grip Series
Item #: 33326281
Brand: Iscar
Model #: 2301920
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Neutral |
| Blade Height (mm) | 17.40 |
| Blade Height (Decimal Inch) | 0.6850 |
| Blade Width (mm) | 3.40 |
| Blade Overall Length (mm) | 110.00 |
| Blade Style | TGFS |
| Insert Style | TAG N-A; TAG N-C/W/M; TAG N-J/JS/JT; TAG N-UT; TAG R/L-C; TAG R/L-J/JS |
| Insert Width (mm) | 3.70 |
| Insert Width (Decimal Inch) | 0.1457 |
| Series | Tang-Grip |
| Insert Seat Size | 3.4 |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 2.3600 |
| Cutting Height (mm) | 17.50 |
| Cutting Height (Decimal Inch) | 0.6890 |
| Minimum Insert Width (mm) | 3.70 |
| Minimum Insert Width (Decimal Inch) | 0.1457 |
| Maximum Insert Width (mm) | 4.50 |
| Maximum Insert Width (Decimal Inch) | 0.1770 |
| Complete Insert Compatibility | TAG L4C-4D; TAG L4J-4D; TAG N4A; TAG N4C; TAG N4CB; TAG N4CJT; TAG N4J; TAG N4M; TAG N4UT; TAG N4W; TAG R4C-4D; TAG R4J-4D |
