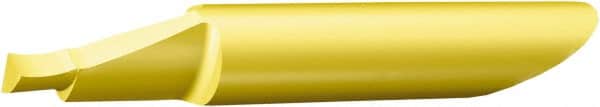

Sandvik Coromant - 1mm Groove Width, 6mm Min Hole Diam, 18mm Max Hole Depth, Grooving Grooving Tool - 18mm Projection, 0.709" Shank Length, 42.5mm OAL, 0.15mm Radius, Solid Carbide, TiCN/TiN Finish
Item #: 33264524
Brand: Sandvik Coromant
Model #: 5726481
Exact Tooling IR#: 04
Features and Benefits
Grooving tools are used for recessing or undercutting a workpiece.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used on stainless steels, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Grooving Tool Type | Grooving |
| Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Groove Width (Decimal Inch) | 0.0394 |
| Groove Width (mm) | 1.00 |
| Projection (Decimal Inch) | 0.7087 |
| Projection (mm) | 18.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.2362 |
| Minimum Hole Diameter (mm) | 6.00 |
| Maximum Hole Depth (Decimal Inch) | 0.7087 |
| Maximum Hole Depth (mm) | 18.00 |
| Overall Length (Decimal Inch) | 1.6732 |
| Overall Length (mm) | 42.50 |
| Finish/Coating | TiCN/TiN |
| Shank Length (Decimal Inch) | 0.7087 |
| Radius (Decimal Inch) | 0.0059 |
| Radius (mm) | 0.15 |
| Manufacturer Grade | 1025 |
