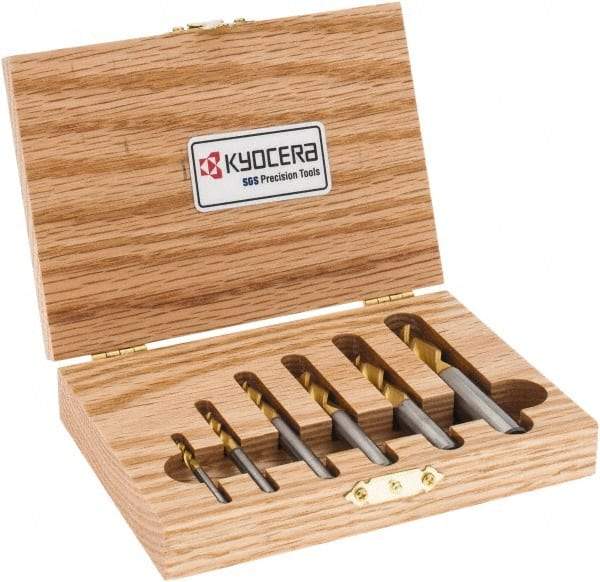

SGS - 1/8 to 1/2", 3 Flute Square End Mill Set - TiN Coating, Solid Carbide, Single End, 1/8, 3/16, 1/4, 5/16, 3/8, 1/2" Shank Diam, Centercutting
Item #: 33206814
Brand: SGS
Model #: 39789
Exact Tooling IR#: 04
Features and Benefits
Square ends are used for general milling applications including slotting, profiling and plunge cutting.
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, non-ferrous metals and other tough to machine materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Roughing | No |
| End Type | Square |
| Minimum Mill Diameter (Inch) | 1/8 |
| Maximum Mill Diameter (Inch) | 1/2 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | TiN |
| Centercutting | Center Cutting |
| Number of Pieces | 6 |
| Single or Double End | Single |
| Mill Diameter (Inch) | 1/8; 3/16; 1/4; 5/16; 3/8; 1/2 |
| Material Grade | Micrograin |
| Shank Diameter (Inch) | 1/8; 3/16; 1/4; 5/16; 3/8; 1/2 |
| Length Type | Regular |
