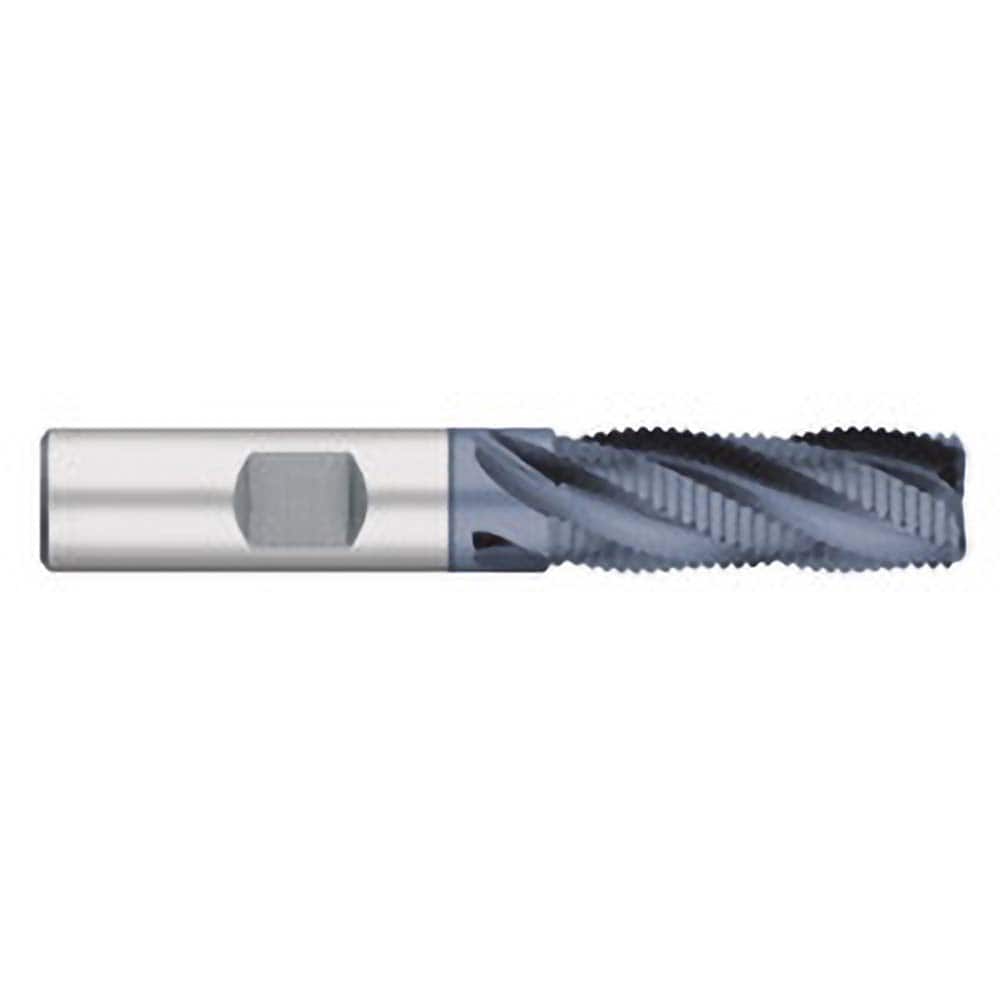

Titan USA - Roughing End Mills; Mill Diameter (Inch): 1 ; Mill Diameter (Decimal Inch): 1.0000 ; Number of Flutes: 5 ; Pitch: Fine ; Length of Cut (Inch): 2 ; Length of Cut (Decimal Inch): 2.0000
Item #: 33134156
Brand: Titan USA
Model #: TE66266
Product Specifications
Roughing End Mills; Mill Diameter (Inch): 1 ; Mill Diameter (Decimal Inch): 1.0000 ; Number of Flutes: 5 ; Pitch: Fine ; Length of Cut (Inch): 2 ; Length of Cut (Decimal Inch): 2.0000
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number of Flutes | 5 |
| Pitch | Fine |
| Length of Cut (Inch) | 2 |
| Length of Cut (Decimal Inch) | 2.0000 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| End Type | Square |
| Material | Cobalt |
| Finish/Coating | AlTiN |
| Overall Length (Inch) | 4-1/2 |
| Centercutting | NonCenter Cutting |
| Helix Angle | 30 |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Regular |
| Flute Type | Helical |
| Overall Length (Decimal Inch) | 4.5000 |
| Series/List | 831 |
