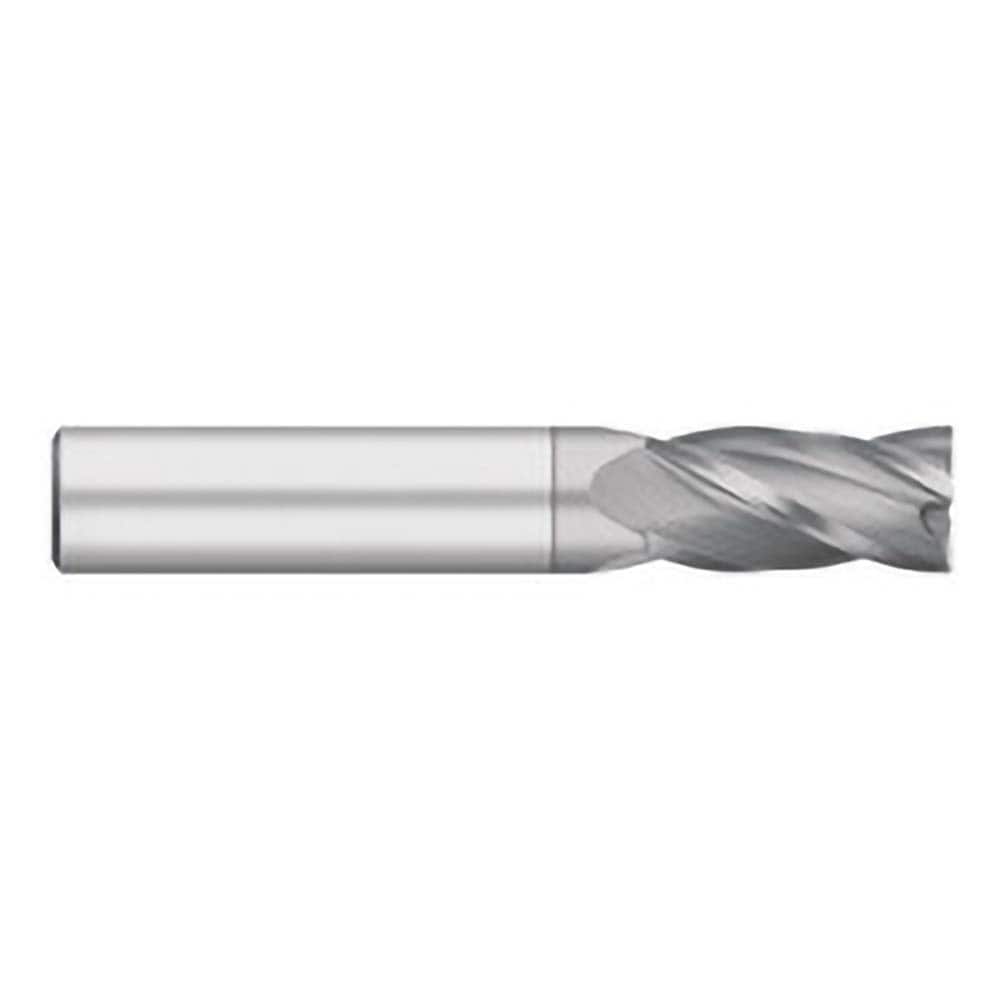

Square End Mill: 1/16'' Dia, 1/4'' LOC, 1/8'' Shank Dia, 1-1/2'' OAL, 4 Flutes, Solid Carbide Single End, TiCN Finish, Upcut Flute, 30 ° Helix, Centercutting, RH Cut, RH Flute
Item #: 33126335
Brand: Titan USA
Model #: TC90504
Product Specifications
| Mill Diameter (Inch) | 1/16 |
| Mill Diameter (Decimal Inch) | 0.0625 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1/4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/8 |
| Finish/Coating | TiCN |
| Overall Length (Inch) | 1-1/2 |
| Helix Angle | 30 |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 0.2000 - 0.3000 |
| Length of Cut (Decimal Inch) | 0.2500 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 1.5000 |
| Flute Direction | Right Hand |
| Flute Type | Upcut |
