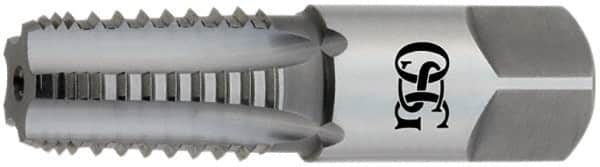

OSG - 3/8-18 NPT, 5 Flutes, TiCN Coated, High Speed Steel, Interrupted Thread Pipe Tap - 0.7 Inch Shank Diameter, 0.7 Inch Shank Diameter, 1-1/16 Inch Thread Length, 0.53 Inch Square Size, 2-1/2 Chamfer, Series 108G
Item #: 33078569
Brand: OSG
Model #: 1315408
Exact Tooling IR#: 04
Features and Benefits
NPT (National Pipe Taper) refers to American National Standard Taper Pipe Threads. They are commonly used for general purpose applications and require a sealant.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
Titanium carbonitride (TiCN) is harder and more wear-resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 3/8-18 |
| Thread Standard | NPT |
| Material | High Speed Steel |
| Finish/Coating | TiCN |
| Number of Flutes | 5 |
| Overall Length (Inch) | 2-9/16 |
| Thread Length (Inch) | 1-1/16 |
| Shank Diameter (Decimal Inch) | 0.7000 |
| Square Size (Decimal Inch) | 0.5310 |
| Material Application | Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High Carbon Steel; Low Carbon Steel; Medium Carbon Steel |
| Series/List | 108G |
| Chamfer | 2-1/2 |
