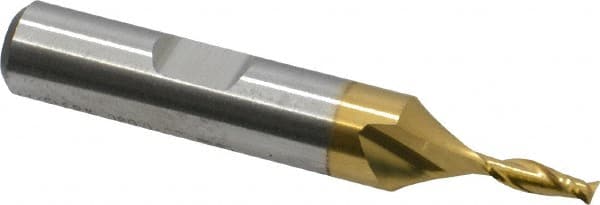

Niagara Cutter - 1/8" Diam, 3/8" LOC, 3/8" Shank Diam, 2-5/16" OAL, 2 Flute High Speed Steel Square End Mill
Item #: 33026394
Brand: Niagara Cutter
Model #: N20040
Product Specifications
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Number of Flutes | 2 |
| Length of Cut (Inch) | 3/8 |
| Length of Cut (Decimal Inch) | 0.3750 |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Shank Diameter (Inch) | 3/8 |
| Single or Double End | Single |
| Overall Length (Inch) | 2-5/16 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 30.00 |
| Flute Type | Spiral |
| Length Type | Regular |
| Mill Diameter Tolerance (Decimal Inch) | +0.001/-0.000 |
| Chipbreaker | No |
| Extended Reach | No |
| Overall Length Tolerance (Decimal Inch) | +0.062/0.000 |
| Shank Diameter Tolerance (Decimal Inch) | -0.0001/-0.0005 |
| Series/List | S203 |
