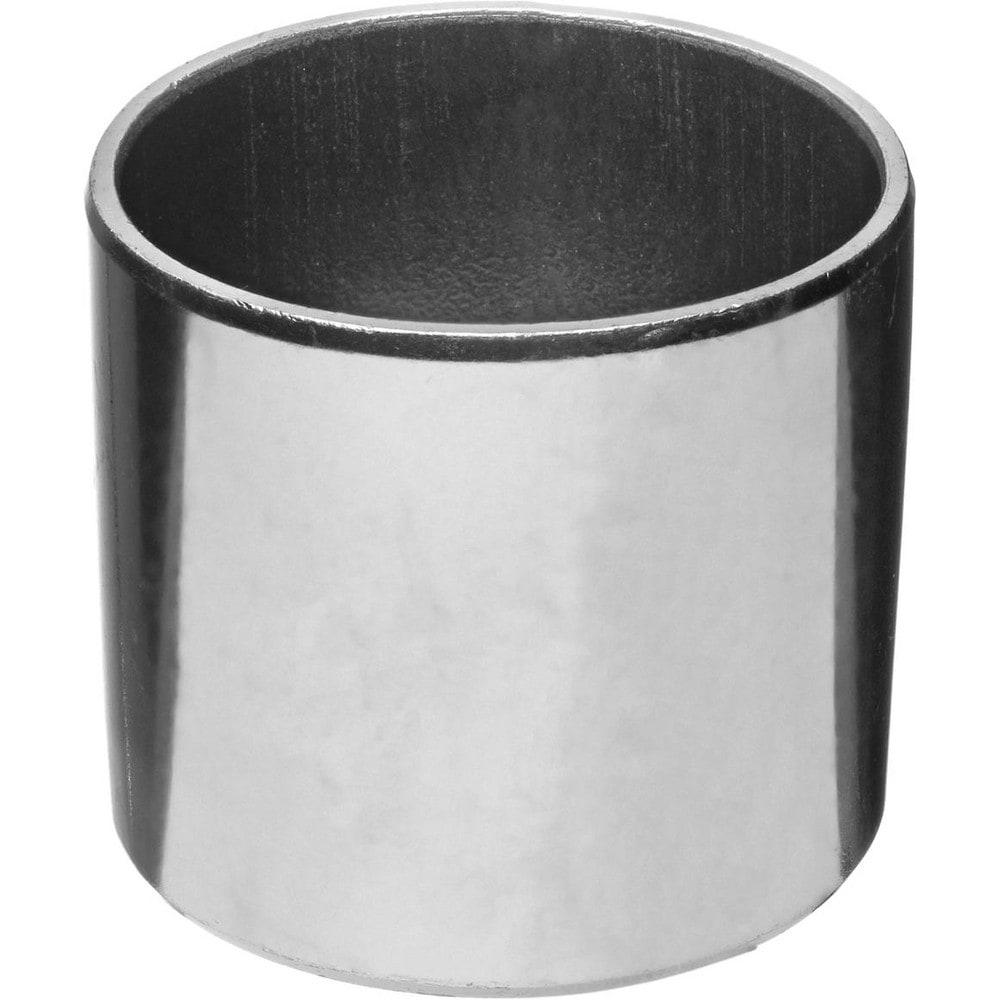

Sleeve Bearings; Bearing Type: Sleeve; Outside Diameter (Inch): 3/4; Outside Diameter (Decimal Inch - 4 Decimals): 0.7500; Inside Diameter (Inch): 43/64; Inside Diameter (Decimal Inch): 0.6719
Item #: 76824283
Brand: USA Industrials
Model #: ZUSAB-PB-72
Product Specifications
| Bearing Type | Sleeve |
| Outside Diameter (Inch) | 3/4 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.7500 |
| Inside Diameter (Inch) | 43/64 |
| Inside Diameter (Decimal Inch) | 0.6719 |
| Material | Steel |
| Overall Length (Inch) | 19/32 |
| Overall Length (Decimal Inch) | 0.5938 |
| Static Load Capacity | 82768.07 |
| Dynamic Load Capacity | 2923960.790 |
| Maximum Pressure X Velocity | 406 |
| Bore Type | Plain |
| Lubricant Type | PTFE |
| Temperature Range | -320 to 530 Deg F |
| Housing Bore Limits Maximum | 18.0180 |
| Housing Bore Limits Mininum | 18.0000 |
| Inside Diameter (mm) | 17.0000 |
| Overall Length (mm) | 15 |
| UNSPSC Code | 31171509 |
| Country of Origin | United Kingdom |
