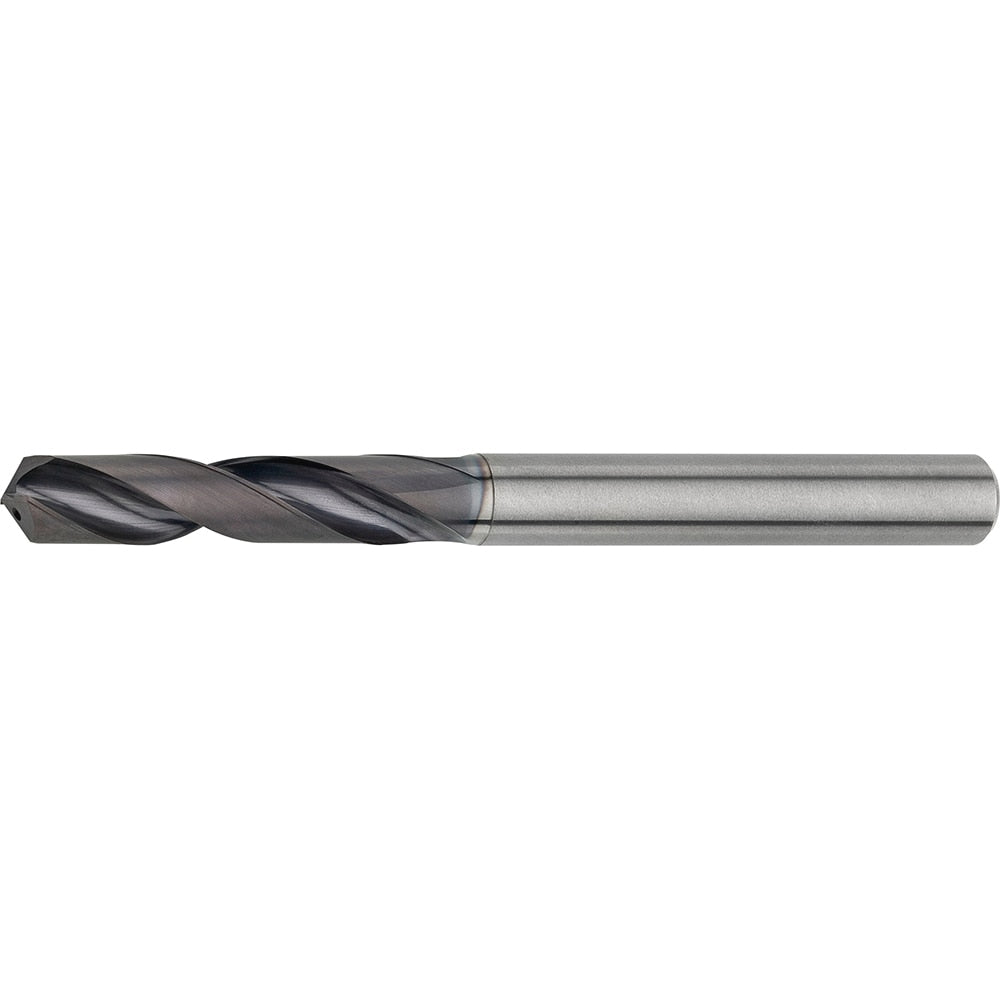

Micro Drill Bit: 1.40 mm Dia, (0.0551"), 135 deg, Solid Carbide
Item #: 67756874
Brand: Mitsubishi
Model #: 474628
Product Specifications
| Drill Bit Size (mm) | 1.40 |
| Drill Bit Size (Decimal Inch) | 0.0551 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 1.5472 |
| Flute Length (mm) | 39.30 |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Drill Point Angle | 135 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 35.29 |
| Maximum Drilling Depth (Decimal Inch) | 1.3894 |
| Number Of Flutes | 2 |
| Series | MWS |
| Overall Length (Decimal Inch) | 2.9252 |
| Overall Length (mm) | 74.30 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | X-Thinning |
| Tool Application | Very Small Hole Drilling; Deep Hole Drilling |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Brass; Hard Material; Austenitic Stainless Steel; Titanium; Superalloys & Titanium; Magnesium; Copper; Steels; Hardened Steel; Soft Metal; Special Alloy; Stainless Steels; Carbon Steel; Tool Steel; Special Alloys; Steel; Bronze Alloy; Iron Alloy; High Temperature Alloys; Alloy Steel; Cast Iron; Nickel; Copper Alloy; Nickel Alloy; Titanium Alloy; Hardened Materials |
| Secondary Workpiece Material Code | S; M |
| Standards | ISO |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Shank Diameter (mm) | 3.00 |
| Shank Length (Decimal Inch) | 1.2598 |
| Shank Length (mm) | 32.00 |
| Flute By Diameter Ratio | 25xD |
| UNSPSC Code | 23241600 |
| Drill Bit Size (mm) | 1.40 |
| Drill Bit Size (Decimal Inch) | 0.0551 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 1.5472 |
| Flute Length (mm) | 39.30 |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Drill Point Angle | 135 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 35.29 |
| Maximum Drilling Depth (Decimal Inch) | 1.3894 |
| Number Of Flutes | 2 |
| Series | MWS |
| Overall Length (Decimal Inch) | 2.9252 |
| Overall Length (mm) | 74.30 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | X-Thinning |
| Tool Application | Very Small Hole Drilling; Deep Hole Drilling |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Brass; Hard Material; Austenitic Stainless Steel; Titanium; Superalloys & Titanium; Magnesium; Copper; Steels; Hardened Steel; Soft Metal; Special Alloy; Stainless Steels; Carbon Steel; Tool Steel; Special Alloys; Steel; Bronze Alloy; Iron Alloy; High Temperature Alloys; Alloy Steel; Cast Iron; Nickel; Copper Alloy; Nickel Alloy; Titanium Alloy; Hardened Materials |
| Secondary Workpiece Material Code | S; M |
| Standards | ISO |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Shank Diameter (mm) | 3.00 |
| Shank Length (Decimal Inch) | 1.2598 |
| Shank Length (mm) | 32.00 |
| Flute By Diameter Ratio | 25xD |
| UNSPSC Code | 23241600 |
| MSC Part # | 67756874 |
| Mfr Part # | 474628 |
| Country of Origin Country of Origin is subject to change | Japan |
