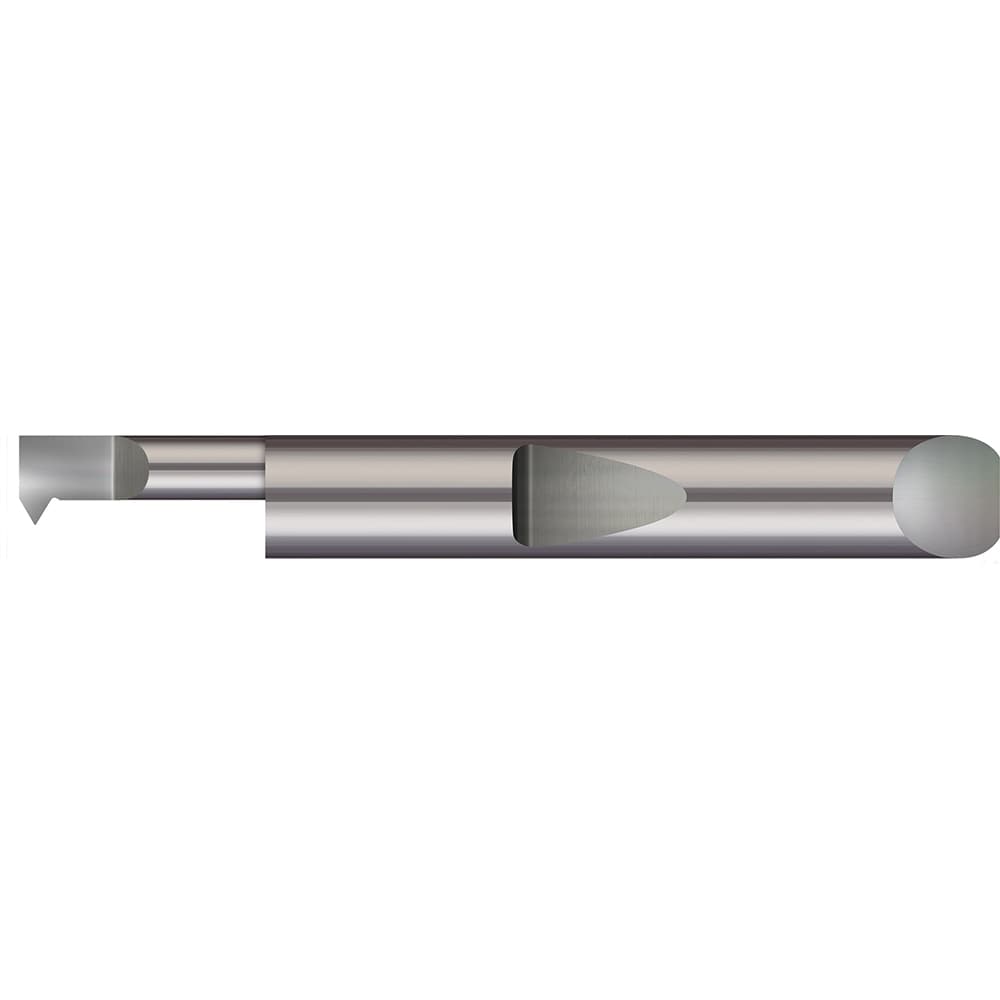

Single Point Threading Tools; Thread Type: Internal, External; Material: Solid Carbide; Profile Angle: 60; Threading Diameter (Decimal Inch): 0.2220; Cutting Depth (Decimal Inch): 1.1250; Maximum Threads Per Inch: 56
Item #: 76463405
Brand: Micro 100
Model #: QIT-2001125
Product Specifications
| Thread Type | Internal; External |
| Material | Solid Carbide |
| Profile Angle | 60 |
| Threading Diameter (Decimal Inch) | 0.2220 |
| Cutting Depth (Decimal Inch) | 1.1250 |
| Maximum Threads Per Inch | 56 |
| Minimum Threads Per Inch | 13 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Thread Direction | Right Hand |
| Projection from Edge (Decimal Inch) | 0.0450 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Coating/Finish | Uncoated |
| Coolant Through | Yes |
| UNSPSC Code | 23242117 |
| Country of Origin | UNITED STATES |
