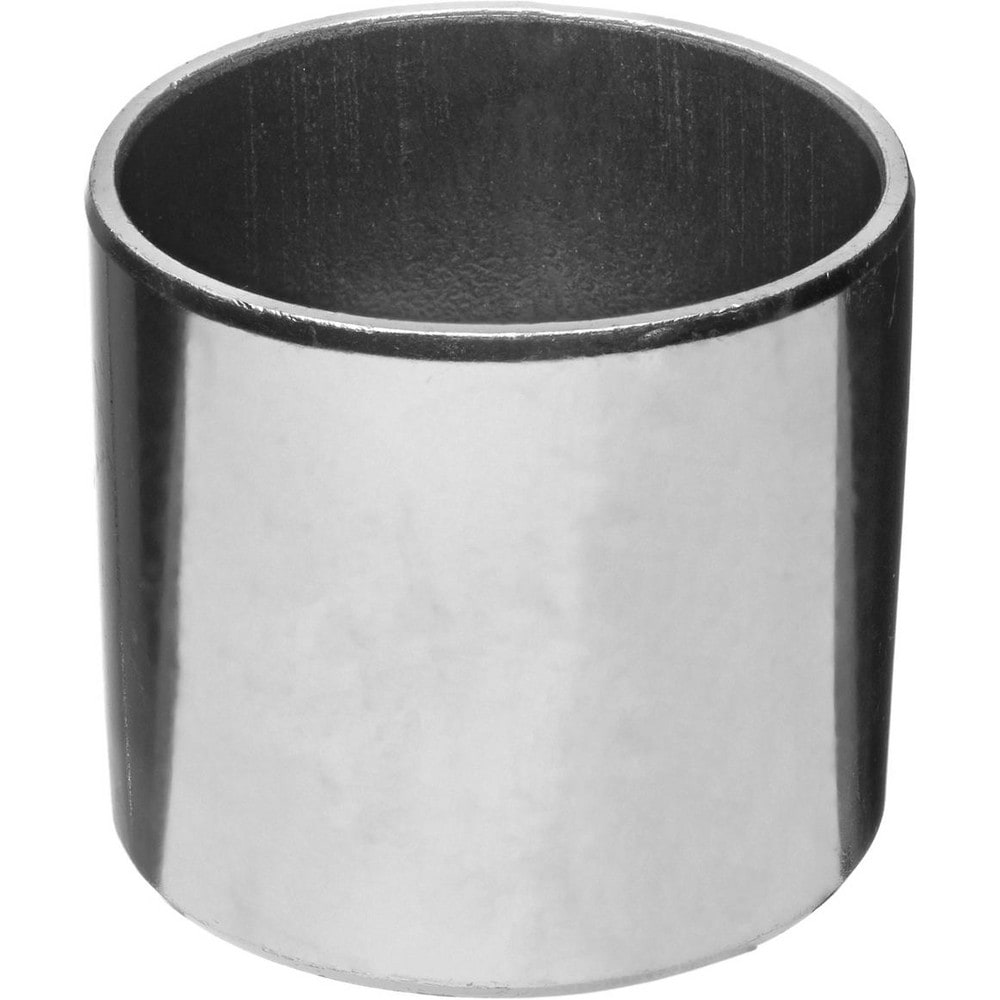

Sleeve Bearings; Bearing Type: Sleeve; Outside Diameter (Inch): 15/16; Outside Diameter (Decimal Inch
Item #: 76928803
Brand: USA Industrials
Model #: ZUSAB-PB-893
Product Specifications
| Bearing Type | Sleeve |
| Outside Diameter (Inch) | 15/16 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.9375 |
| Inside Diameter (Inch) | 13/16 |
| Inside Diameter (Decimal Inch) | 0.8125 |
| Material | Steel |
| Overall Length (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 0.7500 |
| Static Load Capacity | 130152.74 |
| Dynamic Load Capacity | 2923960.790 |
| Maximum Pressure X Velocity | 406 |
| Bore Type | Plain |
| Lubricant Type | PTFE |
| Temperature Range | -320 to 530 Deg F |
| Housing Bore Limits Maximum | 0.9380 |
| Housing Bore Limits Mininum | 0.9370 |
| Inside Diameter (mm) | 20.6400 |
| Overall Length (mm) | 19.05 |
| UNSPSC Code | 31171509 |
| Bearing Type | Sleeve |
| Outside Diameter (Inch) | 15/16 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.9375 |
| Inside Diameter (Inch) | 13/16 |
| Inside Diameter (Decimal Inch) | 0.8125 |
| Material | Steel |
| Overall Length (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 0.7500 |
| Static Load Capacity | 130152.74 |
| Dynamic Load Capacity | 2923960.790 |
| Maximum Pressure X Velocity | 406 |
| Bore Type | Plain |
| Lubricant Type | PTFE |
| Temperature Range | -320 to 530 Deg F |
| Housing Bore Limits Maximum | 0.9380 |
| Housing Bore Limits Mininum | 0.9370 |
| Inside Diameter (mm) | 20.6400 |
| Overall Length (mm) | 19.05 |
| UNSPSC Code | 31171509 |
| MSC Part # | 76928803 |
| Mfr Part # | ZUSAB-PB-893 |
| Country of Origin Country of Origin is subject to change | United Kingdom |
