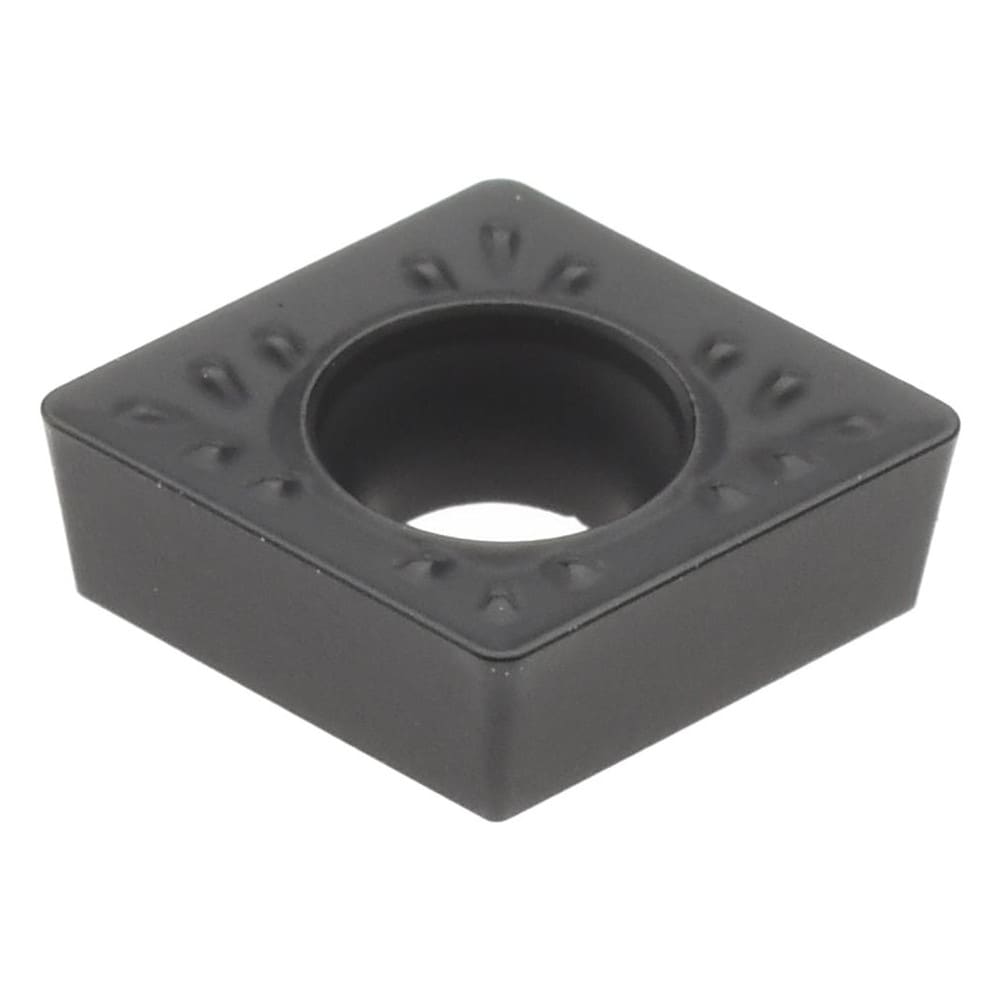

Turning Insert: CCMT060208WM+ ACP25M, Carbide
Item #: 75368167
Brand: Accupro
Model #: 75368167
Product Specifications
| ANSI Insert Code | CCMT21.52 |
| ISO Insert Code | CCMT060208 |
| Relief Angle | 7 |
| Insert Style | CCMT |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80 |
| Manufacturer Grade | ACP25M |
| Coating/Finish | CVD |
| Insert Hand | Neutral |
| Insert Thickness | 2.38 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | CI |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Primary Workpiece Material Code | P; K; M |
| Standards | ANSI Code: CCMT21.52 |
| Chip Breaker | WM+ |
| ANSI Size Code | 21.52 |
| ISO Size Code | 060208 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 06 |
| Country of Origin | VARIOUS |
