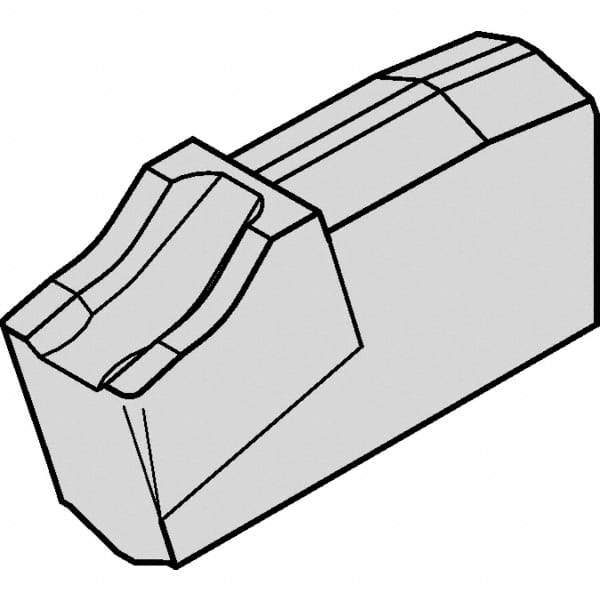

Kennametal - ODC3125 GD Grade KMF Carbide Milling Insert - Uncoated, 0.2mm Corner Radius
Item #: 32852741
Brand: Kennametal
Model #: 1322370
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ODC |
| Insert Size | 3125 |
| Material | Carbide |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KMF |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.1190 |
| Length (Decimal Inch) | 0.4217 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Insert Hand | Neutral |
| Chipbreaker | GD |
| Maximum Depth of Cut (mm) | 10.71 |
| Maximum Depth of Cut (Decimal Inch) | 0.4217 |
| ISO Number | 3.90030ECGD |
