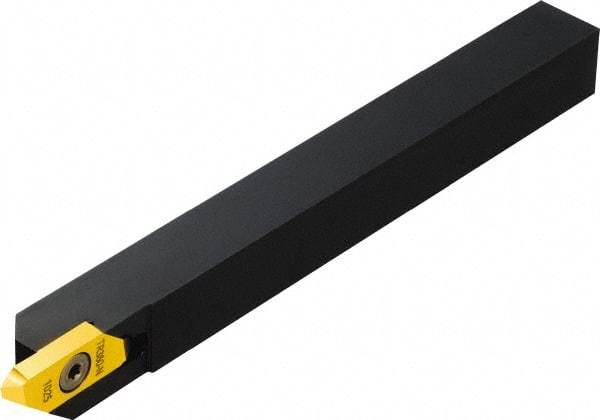

Sandvik Coromant - SMALR, Right Hand Cut, 5/8" Max Workpc Diam, MACR Insert, Indexable Cutoff Toolholder - 8.5mm Max Depth of Cut, 15.875mm Shank Width, 15.875mm Shank Height, 127mm OAL
Item #: 32750168
Brand: Sandvik Coromant
Model #: 5750041
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 8.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.3346 |
| Maximum Workpiece Diameter (mm) | 15.88 |
| Maximum Workpiece Diameter (Inch) | 5/8 |
| Maximum Workpiece Diameter (Decimal Inch) | 0.6250 |
| Series | CoroCut XS |
| Toolholder Style | SMALR |
| Insert Compatibility | MACR |
| Overall Length (mm) | 127.00 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Shank Width/Diameter (mm) | 15.88 |
| Shank Width/Diameter (Inch) | 5/8 |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Shank Height (mm) | 15.88 |
| Shank Height (Inch) | 5/8 |
| Shank Height (Decimal Inch) | 0.6250 |
| Insert Seat Size | 3 |
| Insert Holding Method | Screw |
| Through Coolant | No |
| Minimum Insert Width (mm) | 3.18 |
| Minimum Insert Width (Inch) | 1/8 |
| Minimum Insert Width (Decimal Inch) | 0.1250 |
| Insert Width (mm) | 3.18 |
| Insert Width (Decimal Inch) | 0.1250 |
| Insert Width (Inch) | 1/8 |
| Maximum Insert Width (mm) | 3.18 |
| Maximum Insert Width (Inch) | 1/8 |
| Maximum Insert Width (Decimal Inch) | 0.1250 |
| Back of Bar to Cutting Edge (mm) | 127.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.0000 |
| Head Height (mm) | 15.88 |
| Head Height (Inch) | 5/8 |
| Head Height (Decimal Inch) | 0.6250 |
| Shank Length (Decimal Inch) | 5.0000 |
