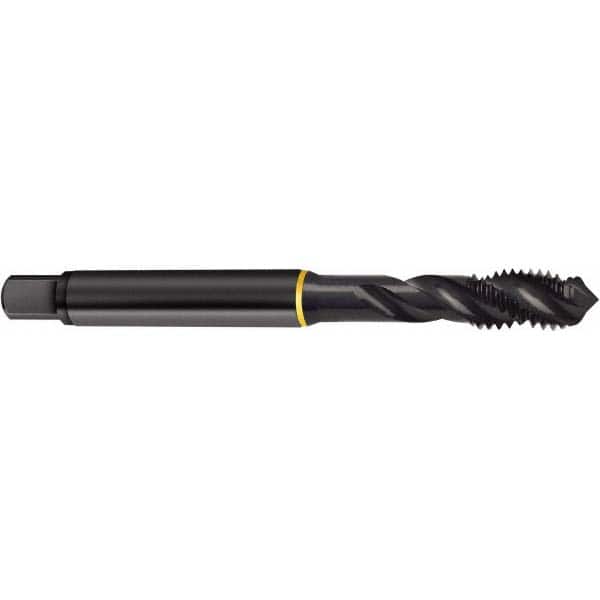

Spiral Flute Tap: 5/16-24, UNF, 3 Flute, Modified Bottoming, 2B & 3B Class of Fit, Cobalt, Oxide Finish 0.433″ Thread Length, 2.72″ OAL, Right Hand Flute, Right Hand Thread, H3, Series 4409
Item #: 32721201
Brand: Guhring
Model #: 9044093079380
Product Specifications
| Material | Cobalt |
| Coating/Finish | Oxide |
| Thread Size (Inch - 0 Decimals) | 5/16-24 |
| Thread Standard | UNF |
| Thread Limit | H3 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.4330 |
| Overall Length (Decimal Inch) | 2.7200 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 40 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Neck Length (Decimal Inch) | 1.3770 |
| Tapping Depth (Decimal Inch) | 1.3770 |
| Square Size (Decimal Inch) | 0.2380 |
| Flute Style | Fast |
| Material Application | Aluminum; Brass; Gray Cast Iron |
| Series | 4409 |
| Coolant Through | No |
| Teeth per Inch | 24 |
| Number Of Flutes | 3 |
| Class Of Fit | 2B; 3B |
