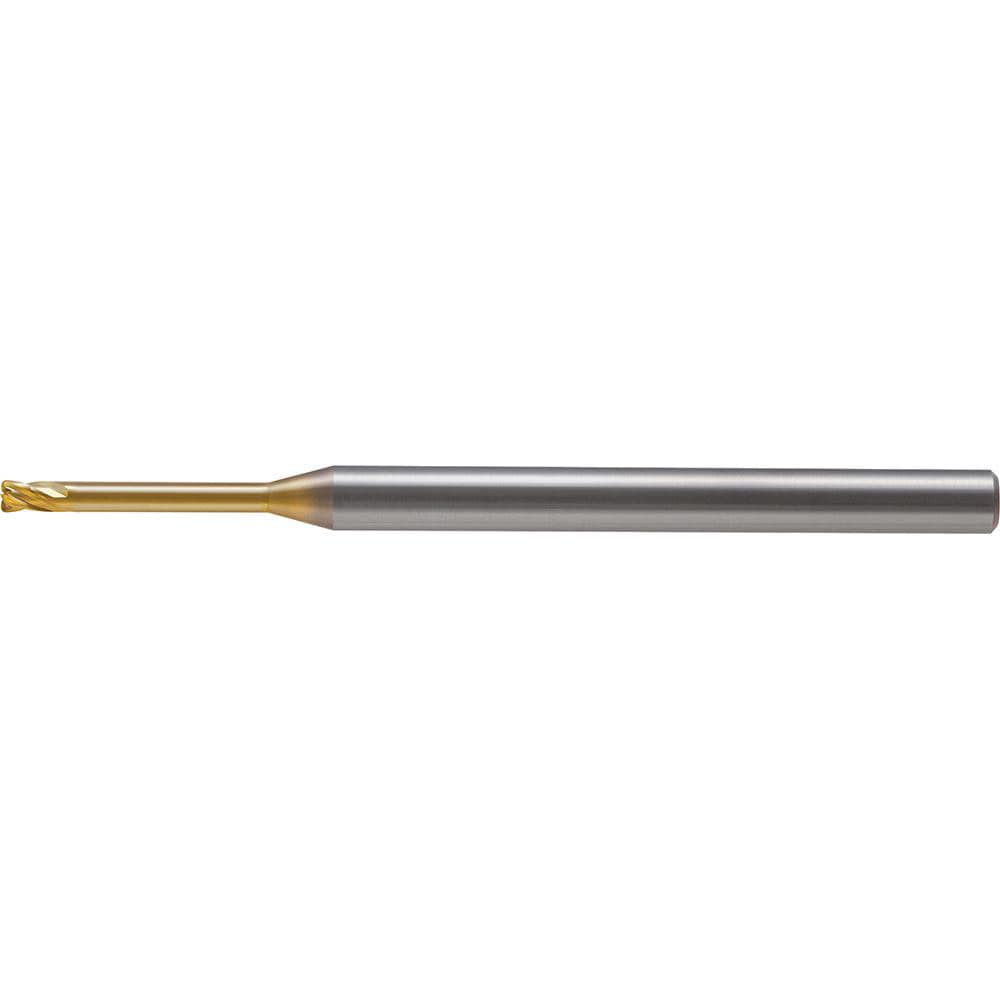

Corner Radius End Mill: 1.50 mm Dia, 1.20 mm LOC, 30 deg Helix, Hardmax Coated, Corner Radius End, Centercutting Series HLRS
Item #: 09756016
Brand: US Union Tool
Model #: 2938051
Product Specifications
| Mill Diameter (mm) | 1.50 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 1.20 |
| End Mill Material | Solid Carbide |
| Coating/Finish | Hardmax |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.30 |
| Overall Length (mm) | 50 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6250 |
| Length Type | Long |
| Extended Reach | Yes |
| Shank Diameter (mm) | 4.00 |
| Mill Diameter Tolerance | -0.015 |
| Shank Diameter Tolerance | -0.005 |
| UNSPSC Code | 27112803 |
| Material Grade | Super MG |
| Series | HLRS |
