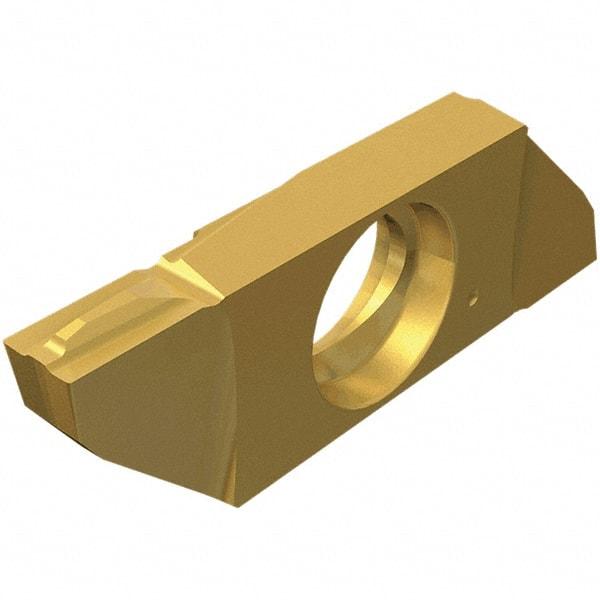

Iscar - SCIL22-AD08 Grade IC1008, 2.4mm Cutting Width Carbide Cutoff Insert - Left Hand Lead Angle, 0.08mm Corner Radius, TiAlN/TiN Finish
Item #: 32652604
Brand: Iscar
Model #: 6411300
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | SCIL |
| Insert Size | 22-AD08 |
| Lead Angle Direction | Left Hand |
| Lead Angle | 60 |
| Cutting Width (mm) | 2.40 |
| Cutting Width (Decimal Inch) | 0.0940 |
| Manufacturer's Grade | IC1008 |
| Coating | TiAlN/TiN |
| Maximum Depth of Cut (mm) | 3.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Multi-Use Application | Grooving; Parting; Turning |
| Coating Process | PVD |
| Overall Length (mm) | 22.00 |
| Overall Length (Decimal Inch) | 0.8660 |
| Corner Radius (Decimal Inch) | 0.0031 |
| Corner Radius (mm) | 0.08 |
| Manufacturers Catalog Number | SCIL 22-AD08-24K8 |
