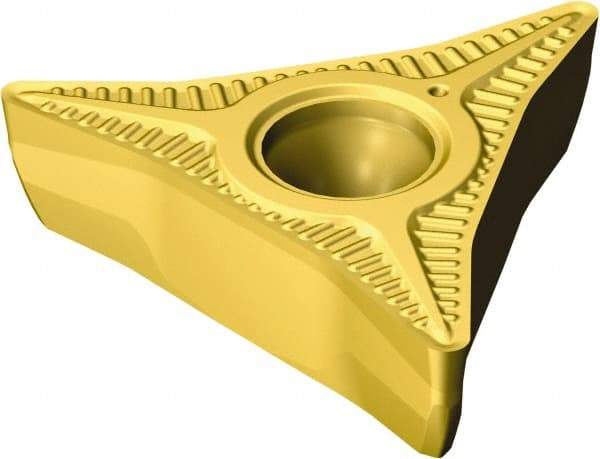

Sandvik Coromant - CP-A1104 L5 Grade 2025 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 35° Included Angle, 11mm Inscr Circle, 6mm Thick, 1/64" Corner Radius
Item #: 32609463
Brand: Sandvik Coromant
Model #: 7100701
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CP-A |
| Insert Size | 1104 |
| Material | Carbide |
| Inscribed Circle (mm) | 11.00 |
| Inscribed Circle (Decimal Inch) | 0.4331 |
| Thickness (Decimal Inch) | 0.2362 |
| Thickness (mm) | 6.00 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | 2025 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | L5 |
| ISO Number | CP-A1104-L5 2025 |
| Relief Angle | 6 |
| Coating Process | CVD |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn Prime |
| Insert Holding Method | Screw |
