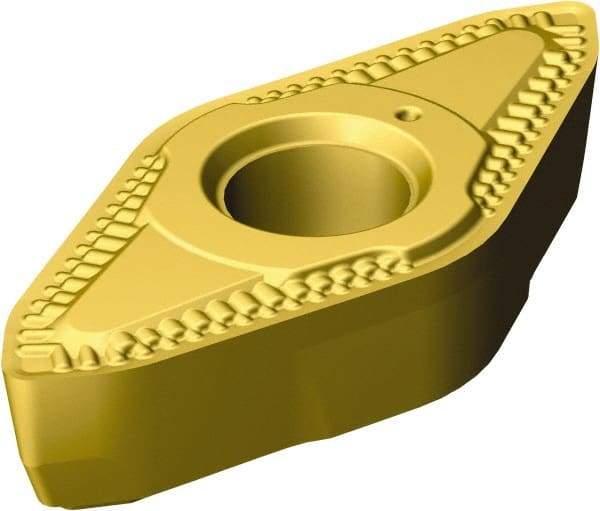

Sandvik Coromant - CP-BB11 M5 Grade 2025 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 40° Included Angle, 11mm Inscr Circle, 5mm Thick, 1/32" Corner Radius
Item #: 32609406
Brand: Sandvik Coromant
Model #: 7100707
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CP-B |
| Insert Size | B11 |
| Material | Carbide |
| Inscribed Circle (mm) | 11.00 |
| Inscribed Circle (Decimal Inch) | 0.4331 |
| Thickness (Decimal Inch) | 0.1969 |
| Thickness (mm) | 5.00 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | 2025 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | M5 |
| ISO Number | CP-B1108-M5 2025 |
| Relief Angle | 6 |
| Coating Process | CVD |
| Included Angle | 40 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn Prime |
| Insert Holding Method | Clamp |
