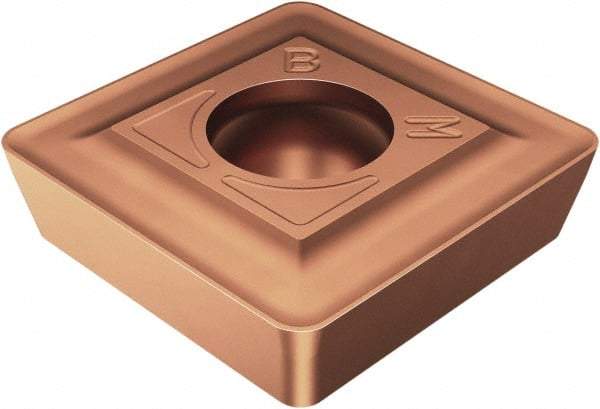

Sandvik Coromant - SPMT0606 BM Grade 1145 Carbide Turning Insert - TiAlN/TiN Finish, 90° Square, 6mm Inscr Circle, 2.6mm Thick, 0.6mm Corner Radius
Item #: 32593337
Brand: Sandvik Coromant
Model #: 7207483
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPMT |
| Insert Size | 0606 |
| Material | Carbide |
| Inscribed Circle (mm) | 6.00 |
| Inscribed Circle (Decimal Inch) | 0.2362 |
| Thickness (Decimal Inch) | 0.1024 |
| Thickness (mm) | 2.60 |
| Corner Radius (mm) | 0.6 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Manufacturer's Grade | 1145 |
| Coating | TiAlN/TiN |
| Chip Breaker | BM |
| ISO Number | SPMT0606-BM 1145 |
| Relief Angle | 11 |
| Coating Process | PVD |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroBore 111 |
| Insert Holding Method | Screw |
| Shape | Square |
