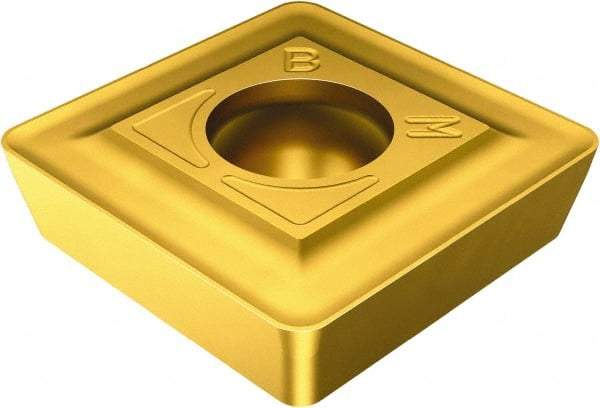

Sandvik Coromant - SPMT0808 BM Grade 2025 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 90° Square, 8.9mm Inscr Circle, 3mm Thick, 1/32" Corner Radius
Item #: 32593311
Brand: Sandvik Coromant
Model #: 7207485
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPMT |
| Insert Size | 0808 |
| Material | Carbide |
| Inscribed Circle (mm) | 8.90 |
| Inscribed Circle (Decimal Inch) | 0.3504 |
| Thickness (Decimal Inch) | 0.1181 |
| Thickness (mm) | 3.00 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.8 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | 2025 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | BM |
| ISO Number | SPMT0808-BM 2025 |
| Relief Angle | 11 |
| Coating Process | CVD |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroBore 111 |
| Insert Holding Method | Screw |
| Shape | Square |
