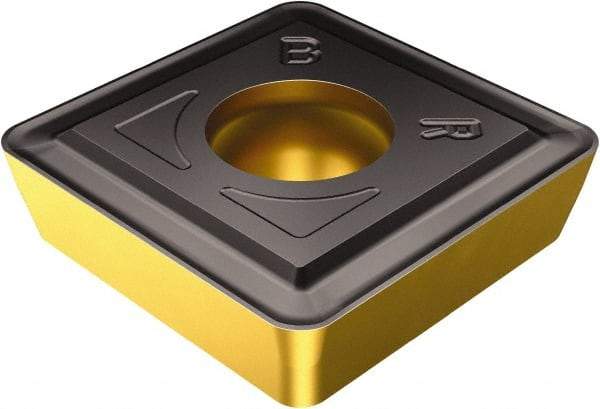

Sandvik Coromant - SPMT1812 Grade 3210 Carbide Boring Insert - TiCN/Al2O3/TiN Finish, 90° Square, 11° Relief Angle, 18.6mm Inscr Circle, 5.5mm Thick, 3/64" Corner Radius
Item #: 32593246
Brand: Sandvik Coromant
Model #: 7207494
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | SPMT |
| Insert Size | 1812 |
| Manufacturer's Grade | 3210 |
| Inscribed Circle (mm) | 18.60 |
| Inscribed Circle (Decimal Inch) | 0.7323 |
| Thickness (mm) | 5.50 |
| Thickness (Decimal Inch) | 0.2165 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Coating | TiCN/Al2O3/TiN |
| Relief Angle | 11 |
| Included Angle | 90 |
| ISO Number | SPMT1812-BR 3210 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Coating Process | CVD |
| Series | CoroBore 111 |
| Insert Holding Method | Screw |
| Shape | Square |
