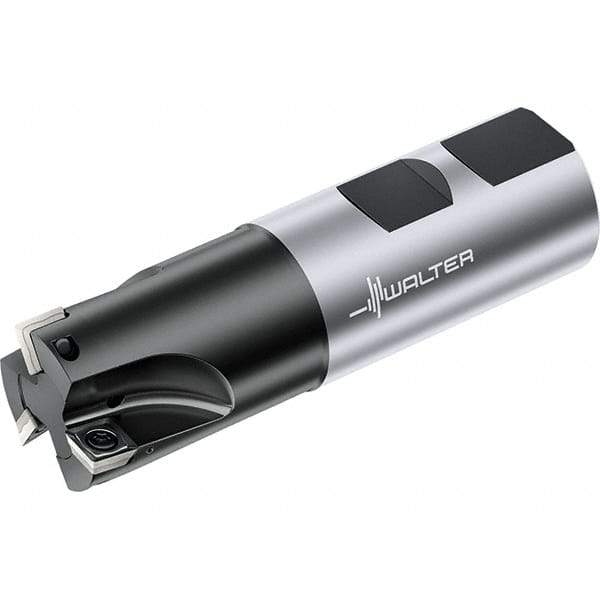

Walter - 3/4" Cut Diam, 5.6mm Max Depth of Cut, 3/4" Shank Diam, 75.6mm OAL, Indexable Square Shoulder End Mill - Weldon Shank, 0° Lead Angle, Through Coolant, Series M4132-UW
Item #: 32548646
Brand: Walter
Model #: 6741181
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 19.05 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Inch) | 3/4 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (mm) | 75.60 |
| Overall Length/Projection (Decimal Inch) | 2.9760 |
| Lead Angle | 0 |
| Series | M4132-UW |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 5.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.220 |
| Number of Cutter Inserts | 3 |
| Number of Flutes | 3 |
| Maximum RPM | 29000 |
| Toolholder Material | Steel |
