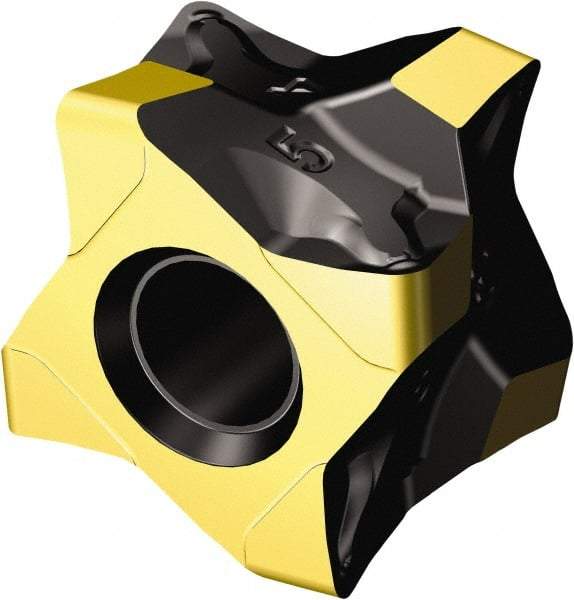

Sandvik Coromant - 3-80101108 L4 Grade 4315 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Irregular, 11mm Thick, 1/32" Corner Radius
Item #: 32295800
Brand: Sandvik Coromant
Model #: 6814658
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 3-80 |
| Insert Size | 101108 |
| Material | Carbide |
| Length (mm) | 25.00 |
| Thickness (mm) | 11.00 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | 4315 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | L4 |
| Insert Length (mm) | 25 |
| Rake Angle | 8 |
| Relief Angle | 0 |
| Coating Process | MTCVD |
| Primary Workpiece Material | P |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 300 |
| Maximum Depth of Cut (mm) | 4.00 |
| Insert Holding Method | Screw |
| Shape | Irregular |
