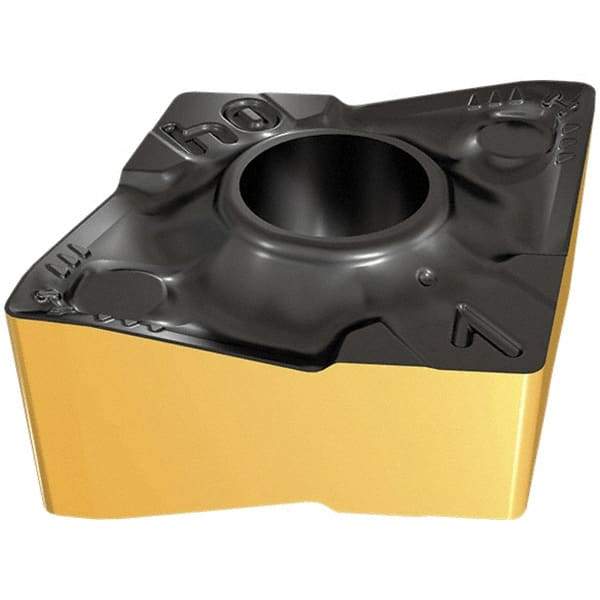

Iscar - CNMX342 M3PW Grade IC20N Carbide Turning Insert - Uncoated, 80° Diamond, 9.52mm Inscr Circle, 4.4mm Thick, 0.8mm Corner Radius
Item #: 32257446
Brand: Iscar
Model #: 5568448
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMX |
| Insert Size | 342 |
| Material | Carbide |
| Length (mm) | 9.67 |
| Length (Decimal Inch) | 0.3810 |
| Inscribed Circle (mm) | 9.52 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1730 |
| Thickness (mm) | 4.40 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | IC20N |
| Coating | Uncoated |
| Chip Breaker | M3PW |
| ISO Number | CNMX 342-M3PW |
| Rake | Positive |
| Manufacturers Catalog Number | 5568448 |
| Primary Workpiece Material | M; P |
| Secondary Workpiece Material | None |
| Included Angle | 80 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Multi Use Application | Turning |
| Shape | Diamond |
