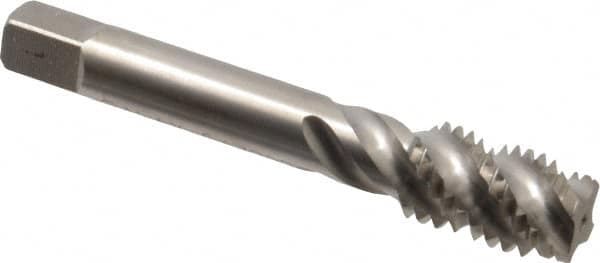

Balax - 5/8-11 UNC 4 Flute 3B Modified Bottoming Spiral Flute Tap - Powdered Metal, Bright Finish, 3-13/16" OAL, Right Hand Flute, Right Hand Thread, H3, Series BX200
Item #: 32047821
Brand: Balax
Model #: 40183
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 5/8-11 |
| Chamfer | Modified Bottoming |
| Class of Fit | 3B |
| Thread Limit | H3 |
| Number of Flutes | 4 |
| Material | Powdered Metal |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Inch) | 3-13/16 |
| Helix Angle | 45 |
| Thread Standard | UNC |
| Material Grade | M42 |
| Oversize | No |
| Thread Length (Inch) | 1 |
| Flute Type | Fast Spiral |
| Series/List | BX200 |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Square Length (Inch) | 9/16 |
| Material Application | Aluminum; Brass; Bronze; Carbon Steel; Copper; Magnesium; Stainless Steel; Wrought Aluminum Alloy; Zinc |
